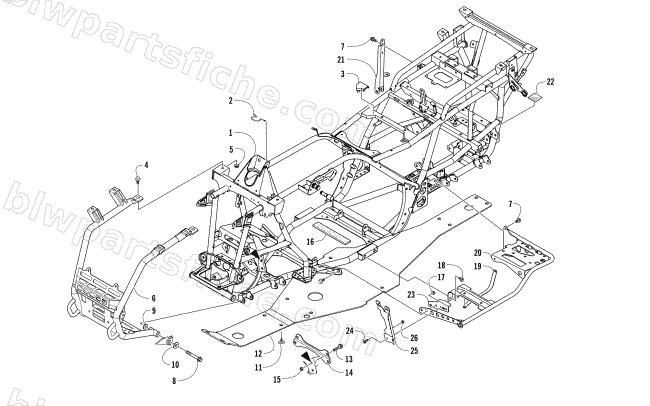

2017 Arctic Cat ALTERRA TRV 700 XT EPS — FRAME AND RELATED PARTS
2017 ALTERRA TRV 700 XT EPS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 2416-401 | CLIP,WIRE HARNESS | 1 | $3.44 | |
| 4 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 5 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 7 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 11 | 1423-109 | SCREW,SELF TAP-TSTRH MR6X1.0X16 | 1 | $2.75 | |
| 12 | 2406-091 | PANEL,BELLY | 1 | $187.95 | |
| 13 | 8409-025 | SCREW,CAP-HFH M10X1.25X25 CL10.9 Z&Y | 1 | $1.50 | |
| 14 | 2516-852 | BRACE,A-ARM-PTD BLACK | 1 | $20.63 | |
| 16 | 0406-289 | PAD,BATTERY-TOP RR | 1 | $1.78 | |
| 17 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 18 | 8409-016 | SCREW,CAP-HFH M10X1.25X16 CL10.9 Z&Y | 1 | $1.50 | |
| 19 | 2406-216 | STRAP,FOOTREST SUPPORT-RH | 1 | $20.63 | |
| 19 | 2406-217 | STRAP,FOOTREST SUPPORT-LH | 1 | $20.63 | |
| 20 | 1506-848 | FOOTREST,RH-WELDMENT | 1 | $156.95 | |
| 20 | 1506-849 | FOOTREST,LH-WELDMENT | 1 | $156.95 | |
| 22 | 4411-550 | DECAL,WARNING-TOWING-1050 LB | 1 | $4.95 | |
| 24 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 26 | 0406-877 | BUMPER,SEAT | 1 | $3.57 |
