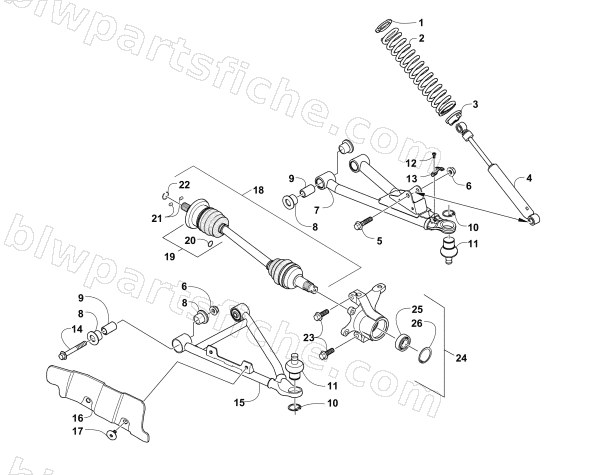

FRONT SUSPENSION ASSEMBLY
2017 HDX 500 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 3 | 0404-496 | ADJUSTER,CAM-SPRING | 1 | $20.63 | |
| 4 | 0403-511 | SHOCK ABSORBER-FRONT(15 PRLR) | 1 | $128.95 | |
| 5 | 8409-055 | SCREW,CAP-HFH M10X1.25X55 CL10.9 Z&Y | 1 | $4.13 | |
| 7 | 0503-432 | A-ARM,FRONT UPPER RH-BLACK-ASSY | 1 | $187.95 | |
| 7 | 0503-433 | A-ARM,FRONT UPPER LH-BLACK-ASSY | 1 | $212.95 | |
| 8 | 0403-409 | BUSHING,A-ARM SUSPENSION | 1 | $2.47 | |
| 9 | 0403-438 | COLLAR,SUSPENSION BUSHING-A-ARM | 1 | $4.95 | |
| 10 | 0423-009 | CLIP,BALL JOINT | 1 | $1.37 | |
| 11 | 0405-483 | BALLJOINT-ASSY (DOUBLE STAKE) | 1 | $38.95 | |
| 12 | 0423-946 | SCREW,SELF TAP-TSPNH-M5X0.8X12 BLK | 1 | $0.68 | |
| 13 | 1502-594 | CLIP,BRAKE HOSE | 1 | $1.92 | |
| 14 | 8409-075 | SCREW,CAP-HFH M10X1.25X75 CL10.9 Z&Y | 1 | $1.92 | |
| 15 | 0503-376 | A-ARM,FRONT LOWER-RH-ASSY (BLACK) | 1 | $260.95 | |
| 15 | 0503-377 | A-ARM,FRONT LOWER-LH-ASSY (BLACK) | 1 | $260.95 | |
| 16 | 1406-034 | GUARD, BOOT-RH (BLACK) | 1 | $37.95 | |
| 16 | 1406-035 | GUARD, BOOT-LH (BLACK) | 1 | $37.95 | |
| 17 | 0423-545 | SCREW,BODY-SELF TAP #12 X 3/4 A Z&B | 1 | $1.09 | |
| 19 | 2436-111 | KIT,REPAIR-CV BOOT | 1 | $80.95 | |
| 21 | 1402-885 | PIN,TRANSFER,SHORT-COUPLER AXLE | 1 | $1.92 | |
| 22 | 1402-889 | CIRCLIP,22MM | 1 | $1.78 | |
| 23 | 0423-998 | SCREW,SHLDR-M10X30 CL10.9 BLK (W/ PATCH) | 1 | $2.61 | |
| 24 | 0505-580 | KNUCKLE,STEERING-RH ASSY | 1 | $239.95 | |
| 24 | 0505-581 | KNUCKLE,STEERING-LH ASSY | 1 | $239.95 | |
| 25 | 1402-809 | BEARING,WHEEL | 1 | $33.95 | |
| 26 | 0423-423 | RING,RETAINING (HOUSING ID:55) | 1 | $4.13 |
