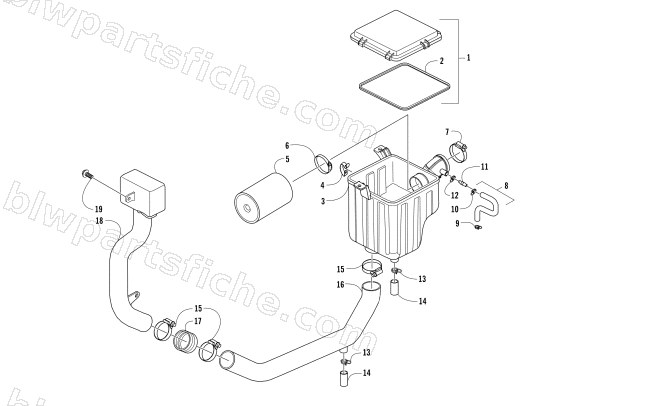

2017 Arctic Cat PROWLER 500 — AIR INTAKE ASSEMBLY
2017 PROWLER 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 6 | 3304-416 | BAND CONNECTING TUBE | 1 | $12.35 | |
| 9 | 3303-714 | CLIP BREATHER TUBE | 1 | $2.33 | |
| 10 | 3313-706 | CLAMP,D 14.8 | 1 | $4.95 | |
| 11 | 3303-711 | JOINT BLOW BY | 1 | $3.44 | |
| 12 | 3304-433 | CLIP B14.5 TUBE | 1 | $1.37 | |
| 14 | 3304-168 | TUBE DRAIN | 1 | $10.97 | |
| 17 | 3313-274 | BOOT, CHAMBER-DUCT | 1 | $5.37 | |
| 19 | 3304-587 | BOLT WASHER 6*16 | 1 | $1.23 |
