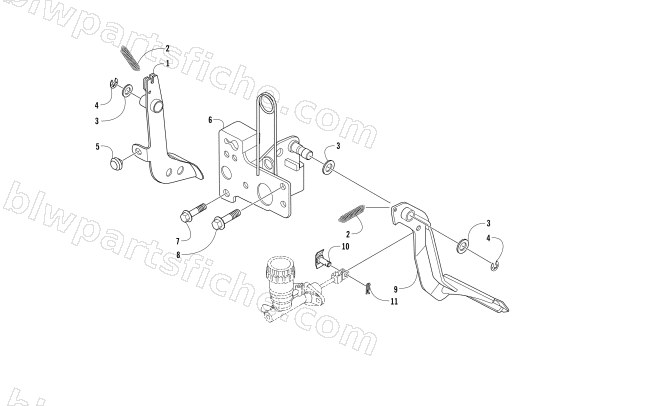

2017 Arctic Cat PROWLER 500 — BRAKE AND ACCELERATOR PEDAL ASSEMBLY
2017 PROWLER 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 3304-139 | WASHER PLAIN 14*26*2.3 | 1 | $1.50 | |
| 4 | 3304-153 | E RING 12 | 1 | $1.92 | |
| 5 | 3304-568 | RUBBER SEAT CUSHION | 1 | $1.92 | |
| 7 | 3304-543 | BOLT FLANGE 8*16 | 1 | $1.50 | |
| 8 | 3313-522 | BOLT,M8*25 | 1 | $1.78 |
