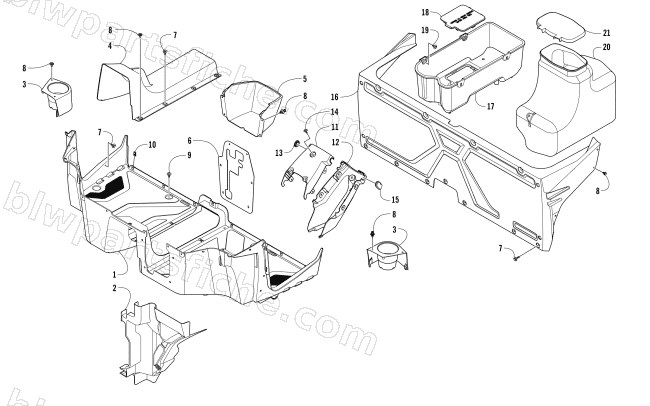

2017 Arctic Cat PROWLER 500 — CONSOLE AND FLOOR PANEL ASSEMBLY
2017 PROWLER 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 7 | 3306-146 | BOLT-WASH 5*22 | 1 | $0.81 | |
| 10 | 3304-061 | NUT CLIP 5MM | 1 | $2.33 | |
| 14 | 3304-587 | BOLT WASHER 6*16 | 1 | $1.23 | |
| 19 | 3304-586 | BOLT WASHER 6*20 | 1 | $1.23 |
