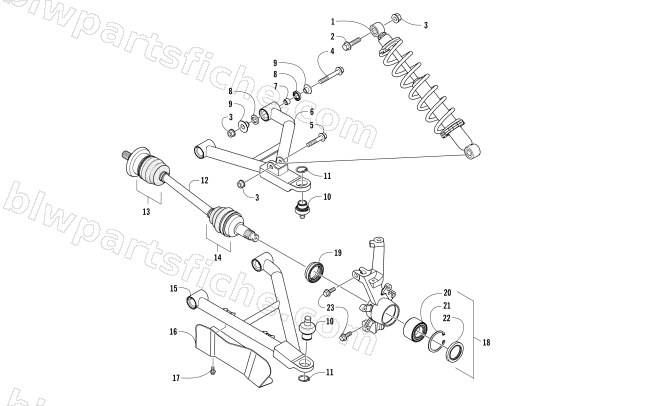

2017 Arctic Cat PROWLER 500 — FRONT SUSPENSION ASSEMBLY
2017 PROWLER 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 3304-031 | NUT U 10MM | 1 | $2.61 | |
| 5 | 3304-595 | BOLT FLANGE 10*50 | 1 | $2.61 | |
| 10 | 0405-483 | BALLJOINT-ASSY (DOUBLE STAKE) | 1 | $38.95 | |
| 11 | 0423-009 | CLIP,BALL JOINT | 1 | $1.37 | |
| 13 | 3313-560 | DIFF SIDE BOOT SERVICE KIT(IN BOARD) | 1 | $94.95 | |
| 14 | 3313-558 | WHEEL SIDE BOOT SERVICE KIT-OUT BOARD | 1 | $69.29 | |
| 16 | 3306-486 | GUARD R RR BOOT | 1 | $16.49 | |
| 16 | 3306-487 | GUARD L RR BOOT | 1 | $16.49 | |
| 17 | 3304-587 | BOLT WASHER 6*16 | 1 | $1.23 | |
| 20 | 1402-809 | BEARING,WHEEL | 1 | $33.95 | |
| 21 | 0423-423 | RING,RETAINING (HOUSING ID:55) | 1 | $4.13 |
