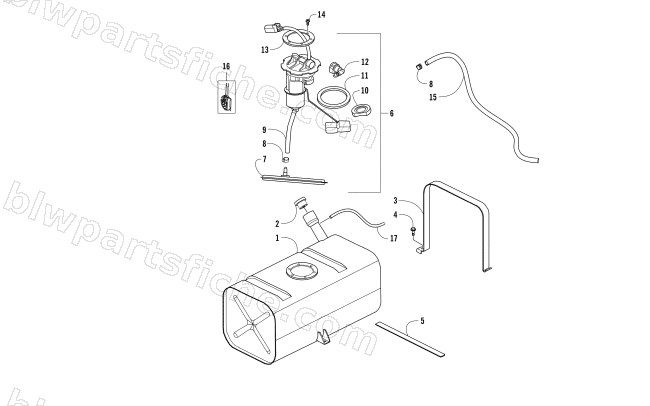

2017 Arctic Cat PROWLER 500 — GAS TANK ASSEMBLY
2017 PROWLER 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 4 | 3304-565 | BOLT FLANGE 8*20 | 1 | $1.50 | |
| 7 | 3307-077 | FUEL FILTER | 1 | $54.95 | |
| 8 | 3307-079 | CLIP 12.5 | 1 | $5.09 | |
| 11 | 3313-845 | SEAL | 1 | $12.35 | |
| 12 | 3306-870 | CONNECTOR FUEL PUMP-90 DEGREE | 1 | $16.49 | |
| 13 | 3306-299 | MOUNT FUEL PUMP | 1 | $6.47 |
