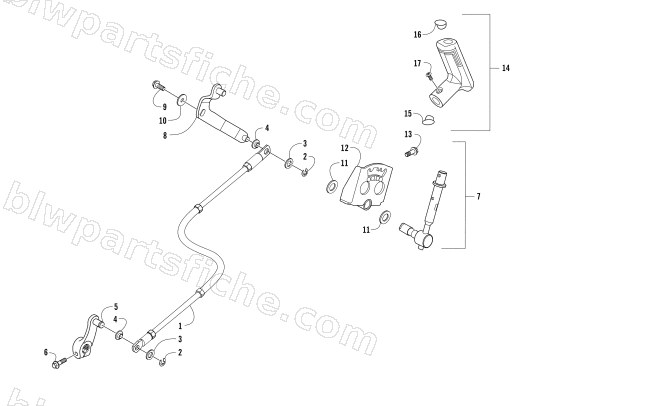

2017 Arctic Cat PROWLER 500 — GEAR SHIFT ASSEMBLY
2017 PROWLER 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3313-766 | E-RING | 1 | $1.50 | |
| 3 | 3304-138 | R/B 3323-163 | 1 | $1.95 | |
| 4 | 3323-037 | BUSHING,SHIFT | 1 | $8.21 | |
| 6 | 3304-551 | BOLT FLANGE 6*22 | 1 | $0.81 | |
| 13 | 3303-543 | COLLAR SPRING | 1 | $10.97 |
