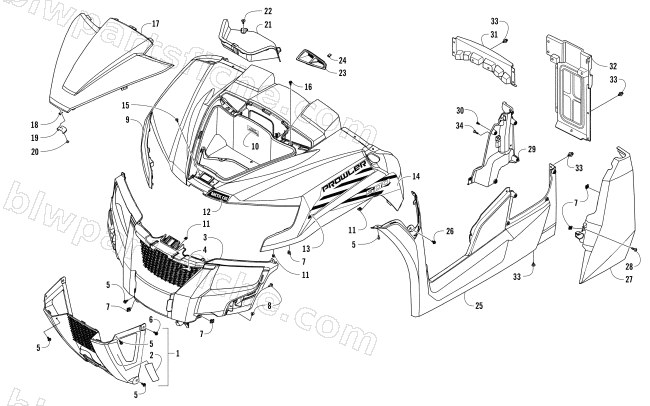

2017 Arctic Cat PROWLER 500 — GRILLE, FRONT BODY PANEL, AND SIDE PANEL ASSEMBLY
2017 PROWLER 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 4 | 4411-479 | EMBLEM,AIRCAT | 1 | $5.95 | |
| 5 | 3304-586 | BOLT WASHER 6*20 | 1 | $1.23 | |
| 6 | 3305-783 | BOLT WASHER 8*16 | 1 | $3.02 | |
| 7 | 3303-267 | NUT CLIP 6MM **0000 C.97.07.26. | 1 | $1.23 | |
| 8 | 3304-029 | BOLT WASH 5*16 | 1 | $0.81 | |
| 10 | 4411-553 | DECAL,CAUTION LOAD CAPACITY (25LB) | 1 | $3.30 | |
| 11 | 3304-061 | NUT CLIP 5MM | 1 | $2.33 | |
| 20 | 3304-123 | SCREW WASHER 4MM | 1 | $0.81 | |
| 22 | 3303-592 | CLIP MUDGUARD | 1 | $2.33 | |
| 26 | 3304-587 | BOLT WASHER 6*16 | 1 | $1.23 | |
| 28 | 3306-146 | BOLT-WASH 5*22 | 1 | $0.81 | |
| 30 | 3304-650 | SCREW TAPPING 5*16 (CIRCLE HEAD) | 1 | $1.50 |
