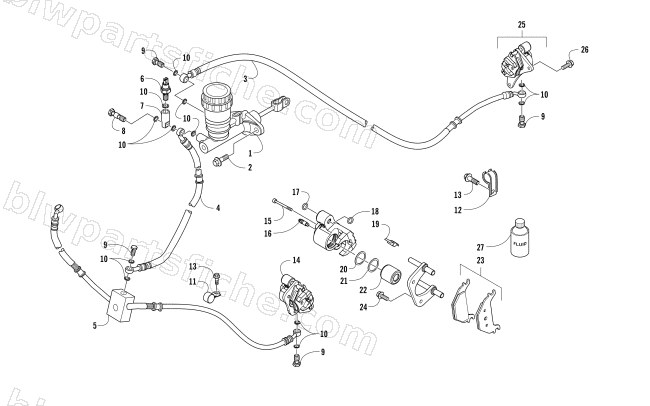

2017 Arctic Cat PROWLER 500 — HYDRAULIC BRAKE ASSEMBLY
2017 PROWLER 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3305-749 | BOLT FLANGE 8*28 | 1 | $1.78 | |
| 6 | 3313-820 | SWITCH-BRAKE PRESSURE-BANJO | 1 | $148.95 | |
| 8 | 3304-674 | OIL BOLT 10*33 | 1 | $13.73 | |
| 9 | 3307-067 | OIL BOLT 10*22 | 1 | $5.09 | |
| 10 | 3303-284 | WASHER OIL BOLT **(1) C.98.06.01. | 1 | $1.23 | |
| 13 | 3304-553 | BOLT FLANGE 6*12 | 1 | $0.81 | |
| 15 | 3304-326 | PIN HANGER | 1 | $6.89 | |
| 16 | 3304-330 | BLEEDER | 1 | $5.92 | |
| 17 | 3304-322 | BOOT A | 1 | $3.16 | |
| 18 | 3304-329 | BUSH PIN | 1 | $5.37 | |
| 19 | 3304-315 | SPRING PAD | 1 | $4.82 | |
| 20 | 3305-380 | SEAL PISTON (FOOT BRAKE) | 1 | $16.49 | |
| 21 | 3305-377 | DUST SEAL (FOOT BRAKE) | 1 | $4.13 | |
| 22 | 3304-314 | PISTON (FOOT BRAKE) | 1 | $58.95 | |
| 23 | 3303-908 | PAD SET | 1 | $58.95 | |
| 24 | 3307-069 | BOLT FLANGE 8X20 | 1 | $5.09 | |
| 27 | 5639-848 | DOT 4 BRAKE FLUID - 12 OZ | 1 | $13.73 |
