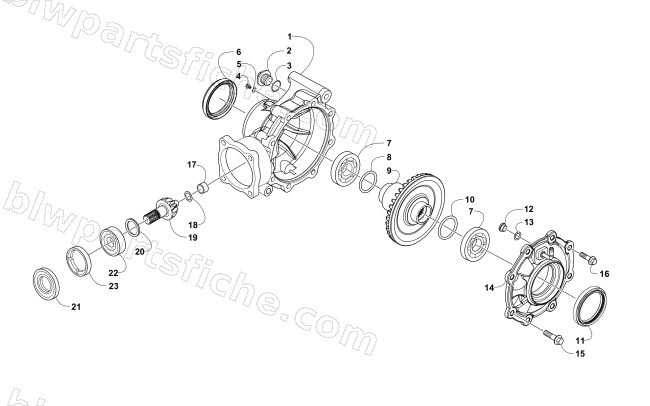

2017 Arctic Cat PROWLER 500 — REAR DRIVE GEARCASE ASSEMBLY
2017 PROWLER 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3303-021 | HOLE CAP TAPPET ADJUSTING **9000 C.97.09 | 1 | $16.49 | |
| 3 | 3304-096 | O-RING 30.8MM | 1 | $1.78 | |
| 4 | 3304-544 | BOLT FLANGE 8*12 | 1 | $1.78 | |
| 5 | 3303-591 | WASHER 8MM | 1 | $0.81 | |
| 12 | 3303-878 | PIN RING GEAR STOPPER | 1 | $12.35 | |
| 13 | 3303-879 | SHIM STOPPER PIN | 1 | $4.13 | |
| 16 | 3304-177 | BOLT FLANGE 8*30MM | 1 | $2.06 | |
| 22 | 3304-194 | BRG RADIAL BALL 6009 | 1 | $90.95 |
