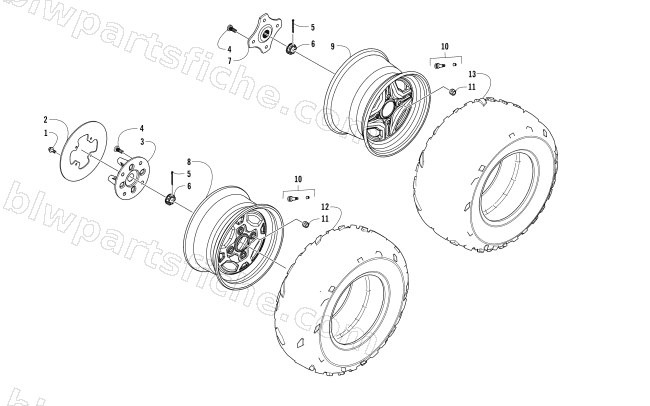

2017 Arctic Cat PROWLER 500 — WHEEL AND TIRE ASSEMBLY
2017 PROWLER 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3304-015 | BOLT STEP HOLDER 8*24 | 1 | $2.33 | |
| 3 | 3307-758 | HUB,ASSY-FRONT (PRLR 500) | 1 | $126.95 | |
| 4 | 3304-014 | BOLT CONNECTOR | 1 | $3.02 | |
| 5 | 0423-407 | PIN,COTTER-1/8X1-1/2 | 1 | $0.40 | |
| 6 | 0423-607 | NUT,CASTLE FLANGE-M22 X 1.5 | 1 | $6.20 | |
| 7 | 3307-759 | HUB,ASSY-REAR (PRLR 500) | 1 | $82.95 | |
| 8 | 3307-784 | WHEEL,STEEL-FENGCHI (12X6.0) | 1 | $126.95 | |
| 9 | 3307-783 | WHEEL,STEEL-FENGCHI (12X7.5) | 1 | $142.95 | |
| 10 | 0402-064 | VALVE STEM(412-50)(SCHRADER) | 1 | $3.44 | |
| 13 | 3307-441 | TIRE RR 25*10.00-12 4PR | 1 | $502.95 |
