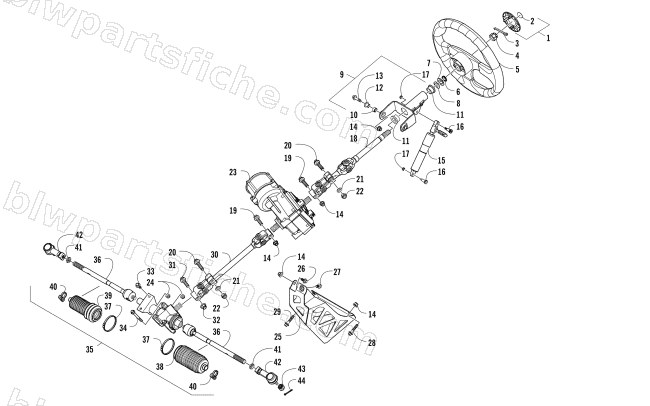

STEERING ASSEMBLY
2017 WILDCAT SPORT XT EPS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0505-690 | CAP,STEERING WHEEL-W/DECAL | 1 | $16.49 | |
| 2 | 1411-798 | DECAL,STEERING WHEEL | 1 | $10.97 | |
| 3 | 1423-045 | CLIP,STEERING WHEEL | 1 | $2.06 | |
| 4 | 0423-884 | NUT,HEX-SLOTTED- M16 X 2 Z&C | 1 | $12.35 | |
| 5 | 0405-398 | WHEEL,STEERING-OVERMOLDED | 1 | $101.95 | |
| 6 | 1423-110 | SNAP RING,3/4 EXT X .086 THK | 1 | $1.50 | |
| 7 | 0423-558 | WASHER(28X19X1) | 1 | $3.02 | |
| 8 | 0828-071 | WASHER,BELLEVILLE | 1 | $4.95 | |
| 9 | 0505-891 | TILT STEERING-SUB ASSY | 1 | $89.95 | |
| 10 | 0405-405 | BUSHING, STEERING-TILT | 1 | $5.65 | |
| 11 | 0405-473 | BUSHING,TILT-FRONT-ASSY | 1 | $12.35 | |
| 12 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 13 | 8408-831 | SCREW,CAP-HFH M8X1.25X30 CL8.8 W/2353 | 1 | $0.95 | |
| 14 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 15 | 0405-468 | SPRING,GAS-TILT ASSY | 1 | $105.95 | |
| 16 | 1423-250 | SCREW, SHOULDER-HSH M6-1.0X8X16-RIE | 1 | $3.71 | |
| 17 | 0623-056 | NUT,LOCK M6X1 | 1 | $0.40 | |
| 18 | 0405-523 | SHAFT,INTERMEDIATE STEERING UPPER | 1 | $283.95 | |
| 19 | 8408-845 | SCREW,CAP-HFH M8X1.25X45 CL8.8 Z&Y | 1 | $1.09 | |
| 20 | 8409-045 | SCREW,CAP-HFH M10X1.25X45 CL10.9 Z&Y | 1 | $1.50 | |
| 21 | 8450-157 | WASHER,FLAT M10X20X2.30 Z&Y | 1 | $3.16 | |
| 22 | 8422-002 | NUT,HEX-THK NYL M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 24 | 8422-802 | NUT,HEX-THK NYL M8x1.25 CL8 Z&Y | 1 | $0.40 | |
| 25 | 0405-530 | BRKT,POWER STEERING MOUNT-PTD-BLK | 1 | $69.95 | |
| 26 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 27 | 8408-818 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y W/204 | 1 | $1.78 | |
| 28 | 8408-840 | SCREW,CAP-HFH M8X1.25X40 CL8.8 Z&Y | 1 | $1.23 | |
| 29 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 30 | 0405-524 | SHAFT,INTERMEDIATE STEERING LOWER | 1 | $211.95 | |
| 31 | 8409-040 | SCREW,CAP-HFH M10X1.25X40 CL10.9 Z&Y | 1 | $1.50 | |
| 32 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 33 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 35 | 0505-894 | RACK AND PINION ASSY-SPORT | 1 | $515.95 | |
| 36 | 0405-536 | TIE ROD END,INNER-SPORT | 1 | $90.95 | |
| 37 | 0405-505 | CLAMP,BELLOWS-LG | 1 | $6.89 | |
| 38 | 0405-487 | BELLOW, DRIVER SIDE | 1 | $23.39 | |
| 39 | 0405-488 | BELLOW, PASSENGER SIDE | 1 | $30.95 | |
| 40 | 0405-504 | CLAMP,BELLOWS-SM | 1 | $6.89 | |
| 41 | 1423-226 | NUT,OUTER JAM | 1 | $2.33 | |
| 42 | 0405-486 | TIE ROD END,OUTER | 1 | $53.95 | |
| 43 | 0423-072 | NUT,HEX CASTLE M10-1.25 | 1 | $2.61 | |
| 44 | 0623-175 | PIN,COTTER 3/32 X 1 | 1 | $0.40 |
