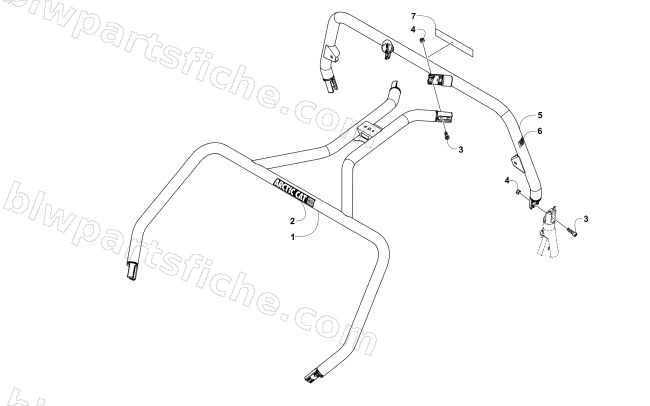

2017 Arctic Cat WILDCAT TRAIL SE EPS — ROPS ASSEMBLY
2017 WILDCAT TRAIL SE EPS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 6411-065 | DECAL,CANOPY-CENTER (TRL/SPORT SE) | 1 | $13.73 | |
| 3 | 1423-140 | SCREW,CAP-HSH M10 X 1.25 X 35 | 1 | $1.78 | |
| 4 | 1423-161 | NUT,HEX LOCK-NSL M10X1.25 GR 8 DIN 985 | 1 | $0.68 | |
| 6 | 3411-970 | DECAL,WARNING-ROPS | 1 | $3.30 | |
| 7 | 6411-064 | DECAL,CANOPY-REAR (TRL/SPORT SE) | 1 | $13.73 |
