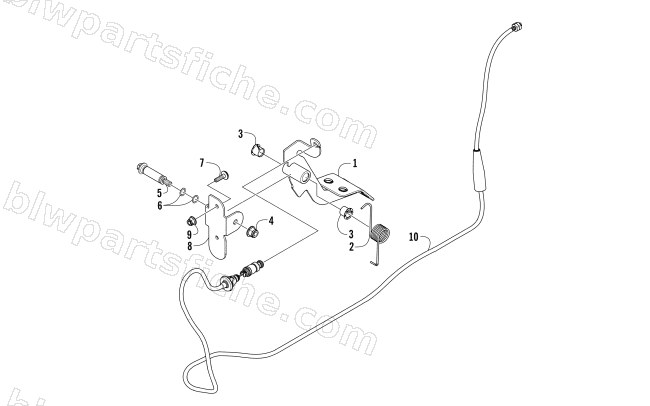

2017 Arctic Cat WILDCAT TRAIL XT EPS LIMITED EDITION — ACCELERATOR ASSEMBLY TEAM ARCTIC GREEN
2017 WILDCAT TRAIL XT EPS LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2502-068 | PEDAL,ACCELERATOR-MACH (BLACK) | 1 | $197.95 | |
| 2 | 0405-233 | SPRING,TORSION | 1 | $8.95 | |
| 3 | 2402-213 | BUSHING (.5 ID X .594 OD X .25 L) | 1 | $2.33 | |
| 4 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 5 | 1423-272 | SCREW,SHOULDER-M8-1.25X45 (W/ GROOVES) | 1 | $17.87 | |
| 6 | 1423-273 | O-RING, .364 ID X .070 W (2-012) | 1 | $0.95 | |
| 7 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 8 | 2502-069 | BRACKET,ACCELERATOR MOUNT-PTD BLACK | 1 | $10.97 | |
| 10 | 0487-088 | CABLE,THROTTLE-HD DAMPER (P145) | 1 | $54.95 |
