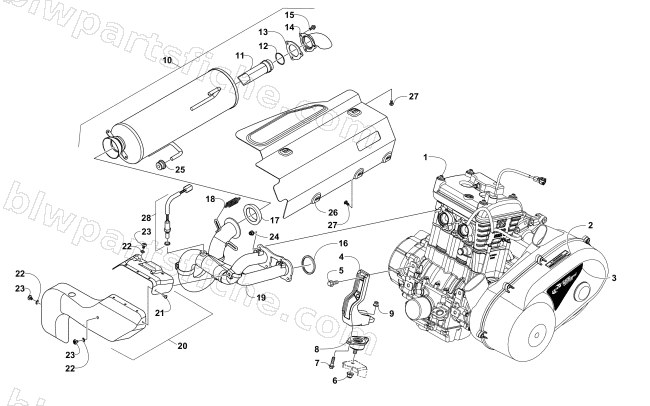

2017 Arctic Cat WILDCAT TRAIL XT EPS LIMITED EDITION — ENGINE AND EXHAUST
2017 WILDCAT TRAIL XT EPS LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-810 | ENGINE,700 ZK | 1 | $4,513.95 | |
| 2 | 0411-426 | DECAL,WARNING-CLUTCH COVER-ATV | 1 | $3.30 | |
| 3 | 2411-287 | DECAL,RAPID RESPONSE-BLK | 1 | $10.97 | |
| 4 | 0508-026 | ENGINE MNT,FRT-MACH-RH | 1 | $84.95 | |
| 4 | 0508-027 | ENGINE MNT,FRT-MACH-LH | 1 | $84.95 | |
| 5 | 8409-030 | SCREW,CAP-HFH M10X1.25X30 CL10.9 Z&Y | 1 | $2.47 | |
| 6 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 7 | 8408-835 | SCREW,CAP-HFH M8X1.25X35 CL8.8 Z&Y | 1 | $2.06 | |
| 8 | 0408-064 | MOUNT,ENGINE-WITH STUD | 1 | $41.95 | |
| 9 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 10 | 0512-679 | MUFFLER-ASSEMBLY-PTD HI TEMP BLK | 1 | $1,018.95 | |
| 11 | 0512-647 | SPARK ARRESTER | 1 | $37.95 | |
| 12 | 1423-246 | WASHER,WAVE | 1 | $10.97 | |
| 13 | 0412-675 | GASKET,SPARK ARRESTER | 1 | $20.63 | |
| 14 | 0512-760 | TAIL PIPE ASSEMBLY-PAINTED | 1 | $47.95 | |
| 15 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 16 | 0412-647 | SEAL, EXHAUST - CRUSH | 1 | $2.75 | |
| 17 | 1612-323 | GASKET, EXH,TAIL PIPE | 1 | $29.95 | |
| 18 | 0612-471 | SPRING,EXHAUST | 1 | $12.35 | |
| 20 | 0512-794 | R/B 1412-134 | 1 | $62.95 | |
| 21 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 22 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 23 | 8477-610 | SCREW,MACH-TSTRH M6X1.0X10 Z&BLK | 1 | $0.68 | |
| 24 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 26 | 0412-774 | SHIELD,HEAT | 1 | $45.95 | |
| 27 | 1623-490 | SCREW,CAP-TSPNH M6X1.0X12 BLK-TRILOBE | 1 | $1.37 |
