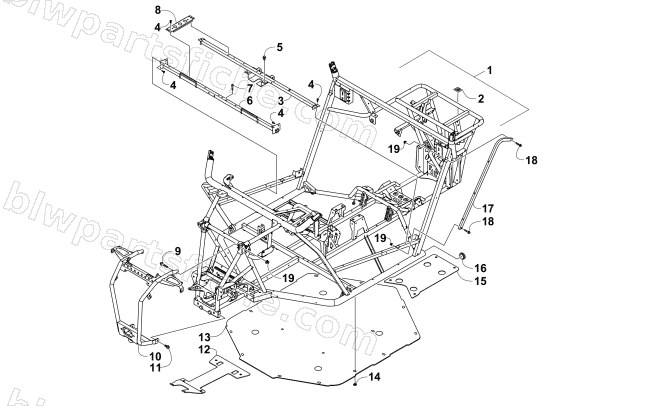

2017 Arctic Cat WILDCAT TRAIL XT EPS LIMITED EDITION — FRAME AND RELATED PARTS
2017 WILDCAT TRAIL XT EPS LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8506-858 | FRAME W/WARNING DECALS (WC TRL) | 1 | $2,628.95 | |
| 2 | 4411-110 | DECAL,WARNING-TOWING-REAR | 1 | $4.95 | |
| 3 | 5506-218 | TUBE,SEAT SUPPORT-PTD BLACK | 1 | $79.95 | |
| 4 | 0423-538 | SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z&B | 1 | $0.68 | |
| 6 | 5506-414 | TUBE,SEAT SUPPORT-PTD BLACK | 1 | $81.95 | |
| 8 | 5506-398 | BRACKET,SEAT SUPPORT-PTD BLK | 1 | $10.95 | |
| 9 | 8408-845 | SCREW,CAP-HFH M8X1.25X45 CL8.8 Z&Y | 1 | $1.09 | |
| 10 | 5506-235 | BUMPER,PTD-BLK (WC50) | 1 | $188.95 | |
| 12 | 4406-347 | PANEL,SKID-FRONT | 1 | $42.95 | |
| 13 | 4406-348 | PANEL,SKID-CENTER | 1 | $212.95 | |
| 14 | 1423-109 | SCREW,SELF TAP-TSTRH MR6X1.0X16 | 1 | $2.75 | |
| 15 | 4406-349 | PANEL,SKID-REAR | 1 | $37.95 | |
| 16 | 2416-962 | CAP,FRAME-44.45MM | 1 | $12.35 | |
| 17 | 5506-396 | TUBE,DOOR HINGE-RH-PTD | 1 | $50.95 | |
| 17 | 5506-397 | TUBE,DOOR HINGE-LH-PTD | 1 | $50.95 | |
| 18 | 8408-840 | SCREW,CAP-HFH M8X1.25X40 CL8.8 Z&Y | 1 | $1.23 | |
| 19 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 |
