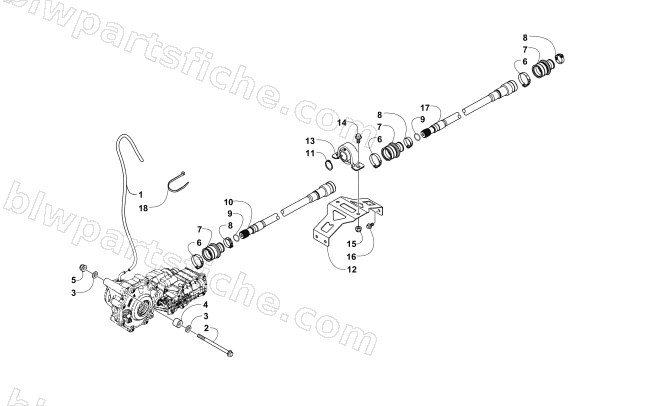

2017 Arctic Cat WILDCAT TRAIL XT EPS LIMITED EDITION — FRONT DRIVE SYSTEM ASSEMBLY
2017 WILDCAT TRAIL XT EPS LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0410-070 | HOSE,FUEL-25 FT (0419-272 CTL) | 1 | $66.95 | |
| 2 | 1623-729 | SCREW,CAP-HFH M10-1.25X145 CL10.9 | 1 | $17.87 | |
| 3 | 0423-426 | WASHER,FLAT-.438X.875X.125 | 1 | $0.68 | |
| 4 | 1423-179 | SPACER,STL-10.5ID X 25.4OD X 19.5LG | 1 | $6.20 | |
| 6 | 0423-393 | CLAMP,42mm DIA - BOOT | 1 | $4.40 | |
| 7 | 0402-985 | BOOT,COUPLER (TBX) | 1 | $6.75 | |
| 8 | 0423-411 | CLAMP,30MM-BOOT | 1 | $4.26 | |
| 9 | 1423-090 | O-RING (2-115) | 1 | $1.64 | |
| 10 | 2402-099 | SHAFT,PROPELLER-FRONT | 1 | $251.95 | |
| 11 | 1423-175 | RING,RETAINING-EXTERNAL (30MM SHAFT) | 1 | $1.92 | |
| 12 | 5506-079 | BRACKET,FRONT DRIVE-PTD BLACK | 1 | $20.63 | |
| 13 | 1402-968 | BEARING,SHAFT CARRIER | 1 | $49.95 | |
| 14 | 8408-020 | SCREW,CAP-HFH M10X1.25X20 CL8.8 Z&Y | 1 | $3.16 | |
| 15 | 8422-002 | NUT,HEX-THK NYL M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 16 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 17 | 2402-100 | SHAFT,PROPELLER-MID FRONT | 1 | $238.95 | |
| 18 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
