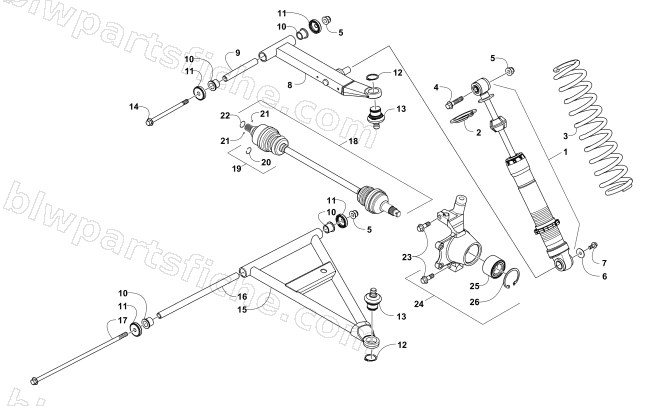

2017 Arctic Cat WILDCAT TRAIL XT EPS LIMITED EDITION — FRONT SUSPENSION ASSEMBLY
2017 WILDCAT TRAIL XT EPS LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0403-292 | SHOCK,FRONT ARM-17.59" | 1 | $494.95 | |
| 2 | 0403-490 | RETAINER,SPRING-2.55 OD X .34 TLG | 1 | $37.95 | |
| 3 | 0504-794 | SPRING,13.5"-145LB-PTD-WHITE | 1 | $53.95 | |
| 4 | 8409-055 | SCREW,CAP-HFH M10X1.25X55 CL10.9 Z&Y | 1 | $4.13 | |
| 6 | 0423-087 | WASHER,5/16 X 1 1/8-1/16 -Z&Y | 1 | $0.40 | |
| 7 | 8408-821 | SCREW,CAP-HFH M8X1.25X20 CL8.8 W/2353 | 1 | $1.09 | |
| 8 | 0503-602 | A-ARM,FR-UPR-RH-ASSY-BLK | 1 | $272.95 | |
| 8 | 0503-603 | A-ARM,FR-UPR-LH-ASSY-BLK | 1 | $272.95 | |
| 9 | 0403-305 | SLEEVE,FR-UPR-SUSPENSION | 1 | $10.97 | |
| 10 | 0403-264 | BUSHING,SUSPENSION | 1 | $13.73 | |
| 11 | 1423-204 | SEAL,SUSPENSION | 1 | $4.95 | |
| 12 | 0423-009 | CLIP,BALL JOINT | 1 | $1.37 | |
| 13 | 0405-483 | BALLJOINT-ASSY (DOUBLE STAKE) | 1 | $38.95 | |
| 14 | 1423-266 | SCREW,CAP-HFH M10-1.25X155 | 1 | $6.47 | |
| 15 | 0503-594 | A-ARM,FR-LWR-RH-ASSY-BLK | 1 | $236.95 | |
| 15 | 0503-595 | A-ARM,FR-LWR-LH-ASSY-BLK | 1 | $244.95 | |
| 16 | 0403-402 | SLEEVE,FRT-LWR SUSPENSION | 1 | $17.87 | |
| 17 | 1423-249 | SCREW,CAP-HFH M10X1.25X330 CL 10.9 | 1 | $27.95 | |
| 19 | 2436-112 | KIT,REPAIR-CV BOOT | 1 | $80.95 | |
| 21 | 1402-885 | PIN,TRANSFER,SHORT-COUPLER AXLE | 1 | $1.92 | |
| 22 | 1402-889 | CIRCLIP,22MM | 1 | $1.78 | |
| 23 | 0423-998 | SCREW,SHLDR-M10X30 CL10.9 BLK (W/ PATCH) | 1 | $2.61 | |
| 24 | 0503-626 | KNUCKLE,FR-RH-ASSY | 1 | $307.95 | |
| 24 | 0503-627 | KNUCKLE,FR-LH-ASSY | 1 | $307.95 | |
| 25 | 1402-809 | BEARING,WHEEL | 1 | $33.95 | |
| 26 | 0423-423 | RING,RETAINING (HOUSING ID:55) | 1 | $4.13 |
