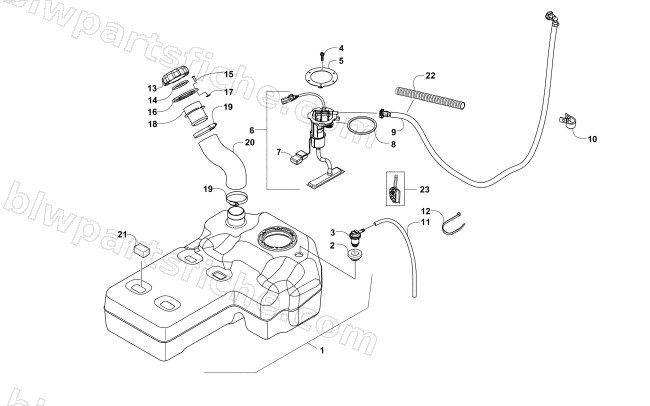

2017 Arctic Cat WILDCAT TRAIL XT EPS LIMITED EDITION — GAS TANK ASSEMBLY
2017 WILDCAT TRAIL XT EPS LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0570-374 | FUEL TANK | 1 | $232.95 | |
| 2 | 1670-822 | GROMMET,3/4"-FUEL TANK | 1 | $3.85 | |
| 3 | 1670-787 | VALVE,CHECK | 1 | $34.95 | |
| 4 | 0423-898 | SCREW,TSPH-THRD FORM M5X0.8X20MM SEMS | 1 | $0.54 | |
| 5 | 2670-042 | MOUNT,FUEL PUMP | 1 | $26.95 | |
| 6 | 0570-402 | PUMP,FUEL-ASSEMBLY | 1 | $460.95 | |
| 7 | 2670-235 | FLOAT,FUEL PUMP-WALBRO 75-22 | 1 | $6.89 | |
| 8 | 0470-838 | SEAL,FUEL-PUMP | 1 | $3.16 | |
| 10 | 1623-675 | CLAMP,CABLE,11/16 INSUL-1/4" MTG | 1 | $1.92 | |
| 11 | 0410-070 | HOSE,FUEL-25 FT (0419-272 CTL) | 1 | $66.95 | |
| 12 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 12 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 13 | 0470-438 | CAP,FUEL TANK | 1 | $13.73 | |
| 14 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 15 | 8060-628 | RIVET,BLIND-DH AA66 BLK | 1 | $1.23 | |
| 17 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 18 | 0470-970 | NECK,FILL-REMOTE | 1 | $10.97 | |
| 19 | 0624-390 | CLAMP,HOSE- (262) 1.75/2..625 | 1 | $17.87 | |
| 20 | 0410-283 | HOSE,FILLER | 1 | $61.95 | |
| 21 | 1470-049 | FOAM, FUEL TANK | 1 | $1.09 | |
| 22 | 0619-776 | CONDUIT,FLEXIBLE-.62 ID-CTL 5' | 1 | $13.73 |
