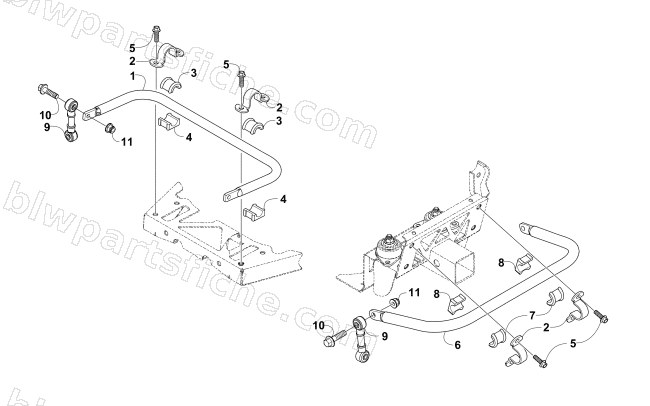

2017 Arctic Cat WILDCAT TRAIL XT EPS LIMITED EDITION — SWAY BAR ASSEMBLIES
2017 WILDCAT TRAIL XT EPS LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0503-728 | SWAYBAR,FRONT-PTD BLACK | 1 | $126.95 | |
| 2 | 0404-135 | CLAMP,SWAYBAR BUSHING-BLACK | 1 | $19.25 | |
| 3 | 0404-094 | BUSHING,UPPER HALF-SWAYBAR | 1 | $5.92 | |
| 4 | 0404-095 | BUSHING,LOWER HALF-SWAYBAR | 1 | $5.92 | |
| 5 | 8409-016 | SCREW,CAP-HFH M10X1.25X16 CL10.9 Z&Y | 1 | $1.50 | |
| 6 | 0504-835 | SWAYBAR-REAR- PTD BLACK | 1 | $178.95 | |
| 7 | 0404-282 | BUSHING,SWAYBAR - UPPER HALF | 1 | $5.92 | |
| 8 | 0404-283 | BUSHING,SWAYBAR - LOWER HALF | 1 | $5.92 | |
| 9 | 0404-522 | LINK,SWAYBAR | 1 | $42.95 | |
| 10 | 8413-842 | SCREW,CAP-HFH M8X1.25X40 CL10.9 W/204 | 1 | $2.47 | |
| 11 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 |
