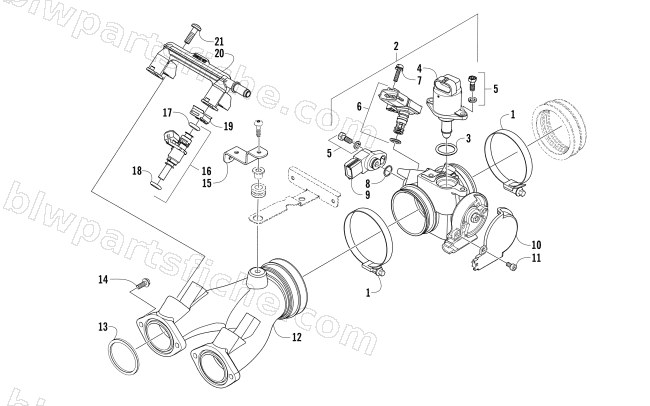

2017 Arctic Cat WILDCAT TRAIL XT EPS LIMITED EDITION — THROTTLE BODY ASSEMBLY
2017 WILDCAT TRAIL XT EPS LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0423-018 | CLAMP,HOSE-WORM (NORMA 60-80) | 1 | $6.47 | |
| 2 | 0570-390 | R/B 0570-426 | 1 | $693.95 | |
| 3 | 0832-088 | SEAL,IDLE SPEED ACTUATOR | 1 | $1.78 | |
| 4 | 0824-054 | ACTUATOR,IDLE SPEED (ISA) | 1 | $212.95 | |
| 5 | 1423-081 | SCREW,MACH HH M5 X 0.8 X 12 W/ WASHER | 1 | $20.63 | |
| 6 | 0824-052 | SENSOR,T-MAP | 1 | $225.95 | |
| 7 | 1423-080 | SCREW,MACH PNPNH M4 X 0.7 X 12 W/ WASHER | 1 | $20.63 | |
| 8 | 3306-150 | O-RING | 1 | $1.50 | |
| 9 | 0824-067 | SENSOR,THROTTLE POSITION (TPS) | 1 | $153.95 | |
| 10 | 0470-961 | COVER,THROTTLE CABLE | 1 | $32.95 | |
| 11 | 1423-095 | SCREW,CAP-HSH M4 X 0.7 X 8 | 1 | $2.75 | |
| 12 | 0570-375 | MANIFOLD,INTAKE-WC50 | 1 | $156.95 | |
| 13 | 0470-531 | O-RING,INTAKE MANIFOLD | 1 | $3.16 | |
| 14 | 3303-383 | BOLT FLANGE SH 6*20 | 1 | $0.81 | |
| 15 | 1470-058 | BRACKET,INJECTOR (014 WC TRAIL) | 1 | $6.89 | |
| 16 | 3306-251 | R/B 0470-884 | 1 | $135.95 | |
| 17 | 3307-074 | O-RING A INJECTOR /BLACK | 1 | $12.35 | |
| 18 | 3307-075 | O-RING B INJECTOR /GREEN | 1 | $12.35 | |
| 19 | 3306-253 | CLIP SPRING FUEL INJECTOR | 1 | $4.82 | |
| 20 | 1470-009 | RAIL,FUEL | 1 | $54.95 | |
| 21 | 3303-382 | BOLT FLANGE 6*16MM | 1 | $0.81 |
