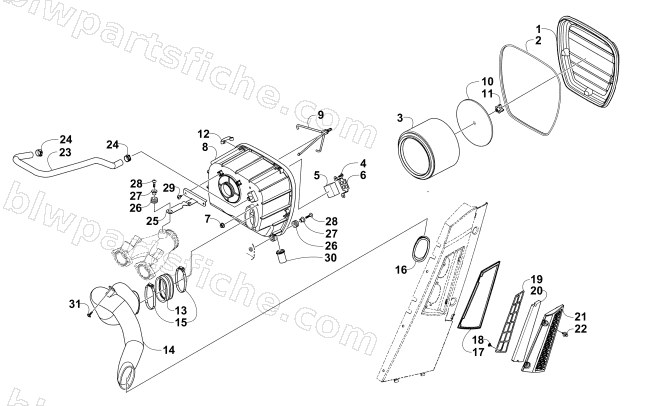

AIR INTAKE ASSEMBLY
2017 WILDCAT TRAIL XT EPS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0470-994 | LID,AIR CLEANER | 1 | $30.95 | |
| 2 | 0470-995 | GASKET,AIR CLEANER | 1 | $19.25 | |
| 3 | 0470-996 | FILTER,AIR CLEANER | 1 | $64.95 | |
| 4 | 8477-516 | SCREW,MACH-TSTRH M5X0.8X16 Z&BLK | 1 | $0.68 | |
| 5 | 1470-002 | FILTER,CRANK VENT | 1 | $10.97 | |
| 6 | 1470-003 | RETAINER,CRANK VENT FILTER | 1 | $61.95 | |
| 7 | 8427-502 | NUT,HEX FLG-NYL LOCK M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 8 | 0570-373 | AIR BOX WELDMENT | 1 | $154.95 | |
| 9 | 1470-007 | RETAINER,AIR FILTER | 1 | $92.95 | |
| 10 | 0470-981 | SUPPORT, AIR FILTER | 1 | $65.95 | |
| 11 | 1423-251 | KNOB, 1.75 OD 5/16-18 X .62 BLK PLASTIC | 1 | $8.95 | |
| 12 | 0423-455 | CLIP,SPRING | 1 | $3.44 | |
| 13 | 0470-999 | BOOT,AIR CLEANER-OUTLET | 1 | $12.35 | |
| 14 | 0470-986 | DUCT,AIR CLEANER | 1 | $47.95 | |
| 15 | 0423-057 | CLAMP,HOSE-WORM (NORMA 70-90X9mm) | 1 | $4.40 | |
| 16 | 1470-056 | SEAL, INTAKE DUCT | 1 | $9.59 | |
| 17 | 1470-057 | SEAL, INTAKE VENT | 1 | $16.49 | |
| 18 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 19 | 1470-031 | RETAINER,AIR INTAKE FILTER | 1 | $10.97 | |
| 20 | 1470-032 | FILTER, AIR INTAKE | 1 | $3.57 | |
| 21 | 4406-265 | FASCIA,SIDE VENT | 1 | $10.97 | |
| 22 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 23 | 0470-982 | HOSE, CRANK VENT | 1 | $20.63 | |
| 24 | 0423-045 | CLAMP,HOSE-SPRING(.685"ID X.38") | 1 | $1.78 | |
| 25 | 0470-983 | MOUNT,AIR CLEANER-UPPER | 1 | $13.73 | |
| 26 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 27 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 28 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 29 | 8468-613 | SCREW,MACH-TSPNH M6X1.0X12 CL8.8 W/2343 | 1 | $1.50 | |
| 30 | 0470-947 | PLUG, AIR CLEANER DRAIN | 1 | $3.71 | |
| 31 | 1423-198 | SCREW,MACH-TSBWH M6X 1.0 TRILOBE BLK | 1 | $0.95 |
