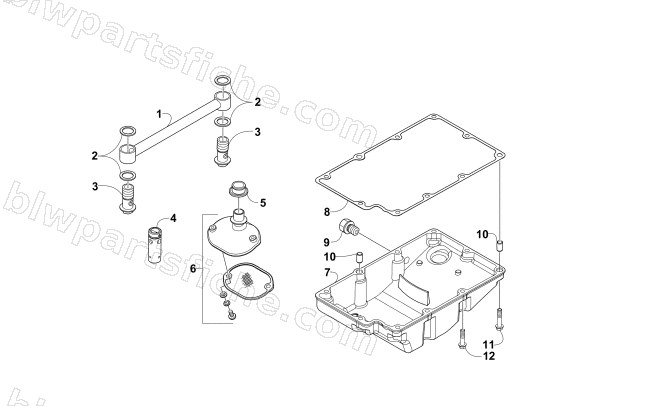

2017 Arctic Cat WILDCAT TRAIL XT EPS — OIL PAN AND STRAINER ASSEMBLY
2017 WILDCAT TRAIL XT EPS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-917 | PIPE COMP OIL | 1 | $42.95 | |
| 2 | 3306-922 | SEALING WASHER OIL PIPE | 1 | $17.87 | |
| 3 | 3306-921 | BOLT B OIL PASS | 1 | $10.97 | |
| 4 | 3306-916 | OIL RELIEF VALVE ASSY | 1 | $112.95 | |
| 5 | 3306-919 | SEAL STRAINER | 1 | $10.97 | |
| 6 | 3306-918 | STRAINER COMP FUEL | 1 | $64.95 | |
| 7 | 3306-974 | OIL SUMP | 1 | $90.95 | |
| 8 | 3306-973 | GASKET R CRANK CASE | 1 | $20.63 | |
| 9 | 3306-925 | BOLT ASSY DRAIN PLUG | 1 | $12.35 | |
| 10 | 3303-341 | PIN DOWEL 8*14 | 1 | $2.33 | |
| 11 | 3305-945 | BOLT FLANGE SH 6X32 | 1 | $1.50 | |
| 12 | 3303-384 | BOLT FLANGE SH 6*25 | 1 | $0.81 |
