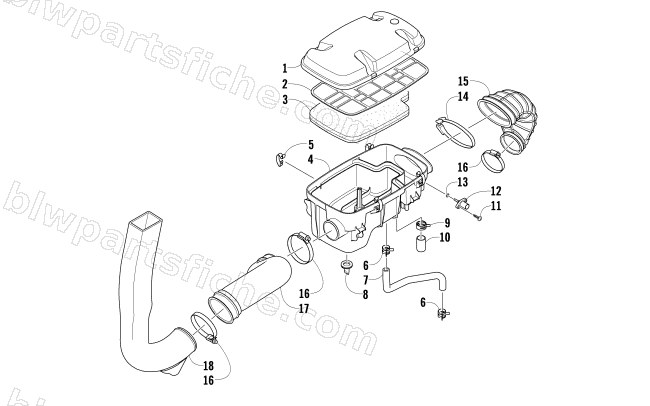

2018 Arctic Cat ALTERRA 700 MUD PRO LTD EPS — AIR INTAKE ASSEMBLY
2018 ALTERRA 700 MUD PRO LTD EPS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0470-877 | R/B 1470-221 | 1 | $99.95 | |
| 2 | 0470-560 | SCREEN,AIR FILTER | 1 | $50.95 | |
| 3 | 0470-558 | FILTER,AIR | 1 | $42.95 | |
| 4 | 0470-728 | AIR BOX, BOTTOM - W/INSERTS (EFI) | 1 | $86.95 | |
| 5 | 0423-455 | CLIP,SPRING | 1 | $3.44 | |
| 6 | 1623-281 | CLAMP,HOSE-SPRING (12W X 18) | 1 | $2.61 | |
| 7 | 0410-172 | HOSE,VENT-CRANKCASE | 1 | $26.95 | |
| 8 | 0470-858 | VALVE,AIR CLEANER-CLOSED | 1 | $6.34 | |
| 9 | 1623-287 | CLAMP,HOSE-SPRING (12W X 24) | 1 | $3.44 | |
| 10 | 0423-766 | CAP,DRAIN-AIR BOX | 1 | $2.06 | |
| 11 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 12 | 0430-055 | SENSOR,AIR TEMP | 1 | $30.95 | |
| 13 | 5507-224 | O-RING,AIR TEMP SENSOR | 1 | $6.06 | |
| 14 | 0423-554 | CLAMP,OVAL-( 64x125x15) | 1 | $20.63 | |
| 15 | 0470-511 | BOOT, AIR CLEANER | 1 | $74.95 | |
| 16 | 0423-019 | CLAMP,HOSE-WORM (NORMA 50-70) | 1 | $2.47 | |
| 17 | 0470-529 | BOOT,AIR IN-CARB | 1 | $64.95 | |
| 18 | 0413-210 | DUCT,AIR-IN | 1 | $94.95 |
