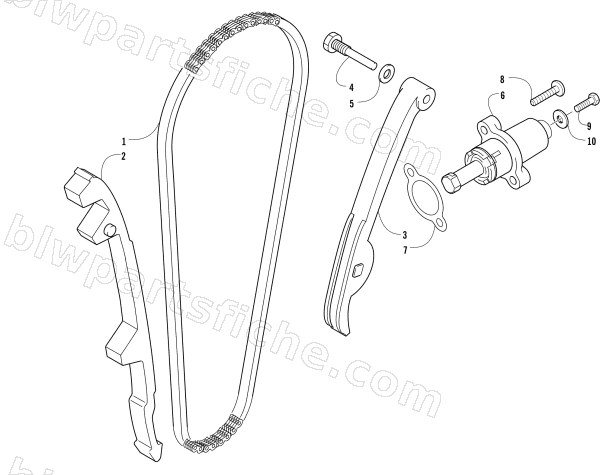

2018 Arctic Cat ALTERRA 700 MUD PRO LTD EPS — CAM CHAIN ASSEMBLY
2018 ALTERRA 700 MUD PRO LTD EPS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0810-001 | CHAIN, CAM | 1 | $74.95 | |
| 2 | 0810-071 | GUIDE,CHAIN | 1 | $26.95 | |
| 3 | 0810-072 | TENSIONER,CHAIN | 1 | $26.95 | |
| 4 | 0826-036 | SCREW,CAP HH SHOULDER M8 x 1.25 x 40 | 1 | $5.37 | |
| 5 | 0830-025 | WASHER, CRUSH, 8 x 13 x 1 | 1 | $2.33 | |
| 6 | 0810-004 | ADJUSTER, TENSIONER - ASSEMBLY | 1 | $58.95 | |
| 7 | 0830-018 | GASKET | 1 | $4.54 | |
| 8 | 8468-625 | SCREW,MACH-TSPNH M6X1.0X25 CL8.8 BLK | 1 | $0.68 | |
| 9 | 8400-610 | SCREW,CAP-HH M6X1X10 8.8 Z&C | 1 | $0.54 | |
| 10 | 0828-129 | WASHER,ALUMINUM 6X15X1.6 | 1 | $1.23 |
