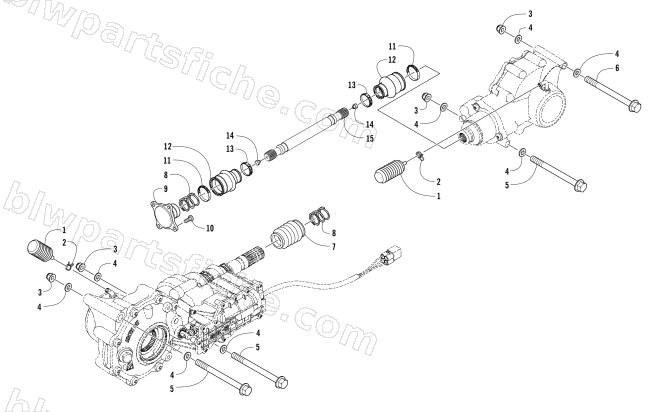

2018 Arctic Cat ALTERRA 700 MUD PRO LTD EPS — DRIVE TRAIN ASSEMBLY
2018 ALTERRA 700 MUD PRO LTD EPS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1402-620 | BLADDER,CASE | 1 | $12.35 | |
| 2 | 0423-315 | CLAMP, HOSE-DOUBLE WIRE | 1 | $0.95 | |
| 4 | 0423-426 | WASHER,FLAT-.438X.875X.125 | 1 | $0.68 | |
| 5 | 0423-404 | SCREW,CAP-HFH M10X1.25X120 CL10.9 Z&Y | 1 | $3.30 | |
| 6 | 0423-830 | BOLT,HFH M10-1.25X125 CL10.9 ZY | 1 | $13.73 | |
| 7 | 0402-966 | BOOT,PROP SHAFT (LONG) | 1 | $13.73 | |
| 8 | 1402-026 | SPRING | 1 | $1.92 | |
| 9 | 2402-193 | FLANGE,OUTPUT | 1 | $82.95 | |
| 10 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 11 | 0423-393 | CLAMP,42mm DIA - BOOT | 1 | $4.40 | |
| 12 | 0402-985 | BOOT,COUPLER (TBX) | 1 | $6.75 | |
| 13 | 0423-411 | CLAMP,30MM-BOOT | 1 | $4.26 | |
| 14 | 0673-618 | BUMPER,DRIVESHAFT | 1 | $3.57 | |
| 15 | 1402-233 | SHAFT,PROPELLER-REAR (500A/400) | 1 | $69.95 |
