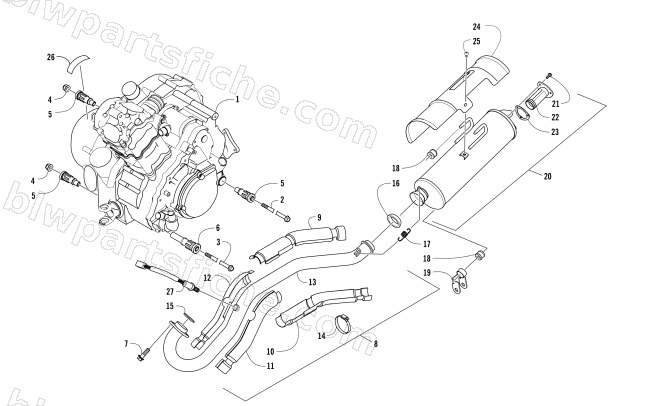

2018 Arctic Cat ALTERRA 700 MUD PRO LTD EPS — ENGINE AND EXHAUST
2018 ALTERRA 700 MUD PRO LTD EPS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0423-451 | SCREW,CAP-HFH M10X1.25X190 CL10.9 Z&Y | 1 | $5.95 | |
| 3 | 0423-405 | SCREW,CAP-HFH M10X1.25X215 CL10.9 Z&Y | 1 | $6.34 | |
| 5 | 0801-129 | MOUNT,RUBBER-ENGINE | 1 | $37.95 | |
| 6 | 0801-122 | MOUNT,RUBBER,ENGINE-LONG | 1 | $58.95 | |
| 7 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 8 | 0512-620 | PIPE,EXHAUST-ASSEMBLY | 1 | $292.95 | |
| 9 | 0412-350 | SHIELD,EXHAUST PIPE | 1 | $30.95 | |
| 10 | 0412-339 | SHIELD,EXHAUST | 1 | $30.95 | |
| 11 | 0412-687 | SHIELD,EXHAUST PIPE | 1 | $30.95 | |
| 12 | 0412-686 | SHIELD,EXHAUST PIPE | 1 | $30.95 | |
| 13 | 0512-622 | PIPE,EXHAUST-BLACK | 1 | $203.95 | |
| 14 | 0423-317 | CLAMP, HOSE -32/50 (NORMA 962) | 1 | $2.75 | |
| 15 | 0412-338 | GASKET,EXHAUST PIPE | 1 | $20.63 | |
| 16 | 0412-375 | SEAL,EXHAUST | 1 | $20.63 | |
| 17 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 | |
| 18 | 0412-577 | BUSHING,MUFFLER | 1 | $2.88 | |
| 19 | 1506-732 | CHANNEL,MUFFLER SUPPORT-BLACK | 1 | $23.39 | |
| 20 | 0512-355 | MUFFLER-PAINTED | 1 | $509.95 | |
| 21 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 22 | 0512-219 | SPARK ARRESTER-ASSEMBLY | 1 | $58.95 | |
| 23 | 0412-313 | GASKET,SPARK ARRESTER | 1 | $26.95 | |
