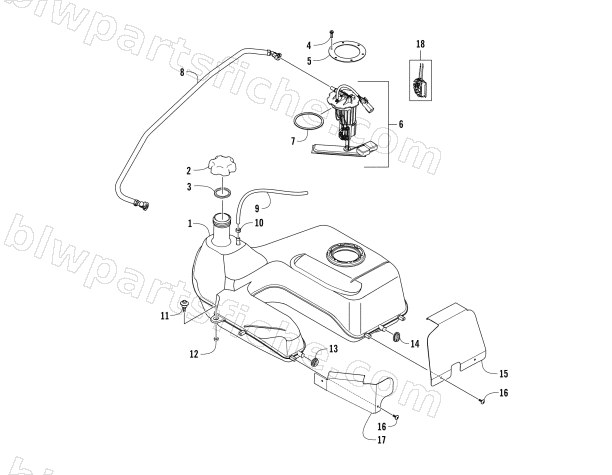

2018 Arctic Cat ALTERRA 700 MUD PRO LTD EPS — GAS TANK ASSEMBLY
2018 ALTERRA 700 MUD PRO LTD EPS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0570-307 | TANK,FUEL-ASSEMBLY (SERVICE PARTS) | 1 | $509.95 | |
| 2 | 0470-438 | CAP,FUEL TANK | 1 | $13.73 | |
| 4 | 0423-898 | SCREW,TSPH-THRD FORM M5X0.8X20MM SEMS | 1 | $0.54 | |
| 5 | 2670-042 | MOUNT,FUEL PUMP | 1 | $26.95 | |
| 6 | 0570-397 | R/B 0570-432 | 1 | $485.95 | |
| 7 | 0470-838 | SEAL,FUEL-PUMP | 1 | $3.16 | |
| 8 | 0570-317 | HOSE,FUEL-ASSEMBLY | 1 | $85.95 | |
| 9 | 0410-070 | HOSE,FUEL-25 FT (0419-272 CTL) | 1 | $66.95 | |
| 10 | 0423-688 | CLAMP,SNAP-10 MM | 1 | $2.33 | |
| 11 | 0423-732 | SCREW,FUEL TANK | 1 | $2.61 | |
| 12 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 13 | 0423-460 | GROMMET, FUEL TANK | 1 | $4.26 | |
| 14 | 0423-806 | GROMMET, FUEL TANK | 1 | $16.49 | |
| 15 | 0470-710 | SHIELD,FUEL TANK-REAR | 1 | $23.39 | |
| 16 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 17 | 0470-709 | SHIELD,FUEL TANK-FRONT | 1 | $20.63 |
