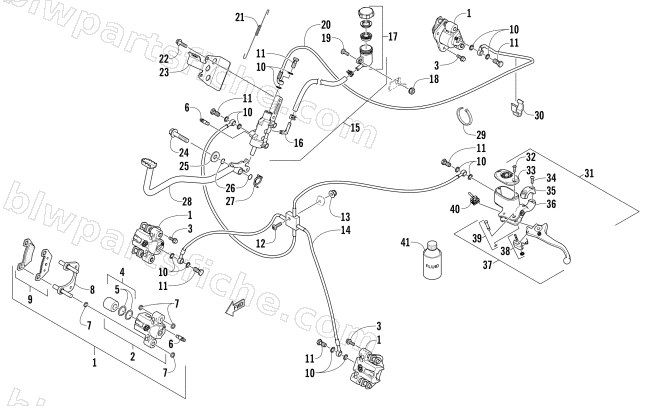

2018 Arctic Cat ALTERRA 700 MUD PRO LTD EPS — HYDRAULIC BRAKE ASSEMBLY
2018 ALTERRA 700 MUD PRO LTD EPS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2502-570 | CALIPER,BRAKE-RH-LIGHTNING II-T117 | 1 | $185.95 | |
| 1 | 2502-571 | CALIPER,BRAKE-LH-LIGHTNING II-T117 | 1 | $185.95 | |
| 2 | 2502-364 | HOUSING,PISTON,SEALS AND BLEEDER-RH | 1 | $239.95 | |
| 2 | 2502-365 | HOUSING,PISTON,SEALS AND BLEEDER-LH | 1 | $239.95 | |
| 3 | 8408-821 | SCREW,CAP-HFH M8X1.25X20 CL8.8 W/2353 | 1 | $1.09 | |
| 4 | 2502-367 | PISTON,SQUARE SEAL,& WIPER | 1 | $42.95 | |
| 6 | 0502-609 | BLEEDER,CALIPER (FC) | 1 | $26.95 | |
| 7 | 0502-608 | GUIDE,O-RINGS-CALIPER (FC) | 1 | $30.95 | |
| 8 | 0502-960 | KIT,BRACKET ASSEMBLY (9.95" DISC) | 1 | $131.95 | |
| 9 | 2402-477 | R/B 2502-578 | 1 | $23.39 | |
| 10 | 0423-178 | WASHER,CRUSH | 1 | $1.78 | |
| 11 | 0423-413 | BOLT,BANJO FITTING-20mm | 1 | $4.13 | |
| 12 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 14 | 2502-521 | HOSE,BRAKE ASSEMBLY,VLX 700 | 1 | $418.95 | |
| 15 | 1502-293 | DIRMCII 5/8"W/REMOTERES 20.25-KIT | 1 | $405.95 | |
| 16 | 1502-296 | HOSE ADAPTER SPOUT,90DEG-GROMMET SEAL | 1 | $24.77 | |
| 17 | 1502-155 | REMOTE RESERVOIR SUBASSY | 1 | $45.95 | |
| 18 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 19 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 20 | 1502-593 | BRAKELINE,31.5",45X45 BANJO,45DEG FITTIN | 1 | $150.95 | |
| 21 | 0502-785 | SPRING,BRAKE SWITCH | 1 | $5.78 | |
| 22 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 23 | 1502-179 | BRACKET,SWITCH-BLACK | 1 | $17.87 | |
| 24 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 25 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 | |
| 26 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 27 | 0502-807 | SPRING,FOOT BRAKE-BLACK | 1 | $16.49 | |
| 28 | 1502-063 | LEVER,FOOTBRAKE-BLACK (A/AUTO) | 1 | $85.95 | |
| 29 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 30 | 1502-115 | CLIP,BRAKE HOSE | 1 | $2.61 | |
| 31 | 1502-902 | CYLINDER,MASTER BRAKE-BLK-ASSY | 1 | $324.95 | |
| 32 | 0502-566 | KIT, RESERVOIR COVER SCREWS | 1 | $6.47 | |
| 33 | 0502-868 | RESERVOIR COVER SUB-ASSEMBLY KIT | 1 | $86.95 | |
| 34 | 0502-568 | KIT, CLAMP SCREWS | 1 | $20.63 | |
| 35 | 0502-869 | CLAMP(BLACK) | 1 | $53.95 | |
| 36 | 0502-704 | KIT,REBUILD MASTER CYLINDER (HAYES BLK) | 1 | $192.95 | |
| 37 | 1502-904 | KIT,LEVER AND PARK LEVER SUB-ASSY | 1 | $118.95 | |
| 38 | 1502-905 | KIT,PARK LEVER SUB-ASSY | 1 | $20.63 | |
| 39 | 0502-580 | KIT,SNAP RING | 1 | $20.63 | |
| 40 | 0502-564 | KIT, BRAKE LIGHT SWITCH | 1 | $58.95 | |
| 41 | 5639-848 | DOT 4 BRAKE FLUID - 12 OZ | 1 | $13.73 |
