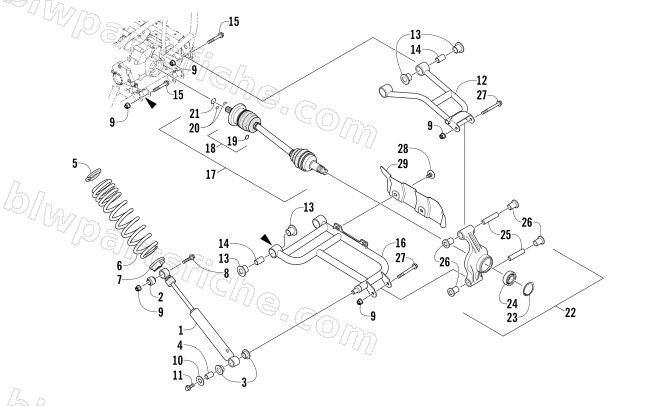

2018 Arctic Cat ALTERRA 700 MUD PRO LTD EPS — REAR SUSPENSION ASSEMBLY
2018 ALTERRA 700 MUD PRO LTD EPS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0404-150 | SHOCK ABSORBER-REAR | 1 | $132.95 | |
| 2 | 0403-182 | BUSHING-DOUBLE BONDED | 1 | $15.11 | |
| 3 | 0603-955 | BUSHING, SKI SHOCK-.045" LIP | 1 | $9.59 | |
| 4 | 1603-575 | SLEEVE,EYELET.790X.812X.635" POWDER MET | 1 | $22.01 | |
| 5 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 6 | 1504-478 | SPRING,COIL-150LB/13"-PTD MEDIUM GREEN | 1 | $62.95 | |
| 7 | 0404-496 | ADJUSTER,CAM-SPRING | 1 | $20.63 | |
| 8 | 8409-040 | SCREW,CAP-HFH M10X1.25X40 CL10.9 Z&Y | 1 | $1.50 | |
| 8 | 8409-050 | SCREW,CAP-HFH M10X1.25X50 CL10.9 Z&Y | 1 | $1.92 | |
| 10 | 0423-087 | WASHER,5/16 X 1 1/8-1/16 -Z&Y | 1 | $0.40 | |
| 11 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 12 | 0504-582 | A-ARM,REAR UPPER-RH-ASSY (BLACK) | 1 | $148.95 | |
| 12 | 0504-583 | A-ARM,REAR UPPER-LH-ASSY (BLACK) | 1 | $148.95 | |
| 13 | 0403-409 | BUSHING,A-ARM SUSPENSION | 1 | $2.47 | |
| 14 | 0403-438 | COLLAR,SUSPENSION BUSHING-A-ARM | 1 | $4.95 | |
| 15 | 8409-075 | SCREW,CAP-HFH M10X1.25X75 CL10.9 Z&Y | 1 | $1.92 | |
| 16 | 0504-572 | A-ARM,REAR LOWER-RH-ASSY (BLACK) | 1 | $227.95 | |
| 16 | 0504-573 | A-ARM,REAR LOWER-LH-ASSY (BLACK) | 1 | $227.95 | |
| 17 | 1502-941 | KIT,HALFSHAFT (1502-804) | 1 | $421.95 | |
| 18 | 2436-112 | KIT,REPAIR-CV BOOT | 1 | $80.95 | |
| 20 | 1402-884 | PIN,TRANSFER,LONG-COUPLER AXLE | 1 | $1.64 | |
| 21 | 1402-890 | CIRCLIP,25MM | 1 | $5.09 | |
| 22 | 0504-548 | KNUCKLE,REAR-ASSY | 1 | $252.95 | |
| 22 | 0504-549 | KNUCKLE,REAR-ASSY | 1 | $252.95 | |
| 23 | 0423-423 | RING,RETAINING (HOUSING ID:55) | 1 | $4.13 | |
| 24 | 1402-809 | BEARING,WHEEL | 1 | $33.95 | |
| 25 | 0403-437 | COLLAR,SUSPENSION BUSHING-REAR K | 1 | $6.89 | |
| 26 | 0403-283 | BUSHING,REAR SUSPENSION | 1 | $2.75 | |
| 27 | 8409-000 | SCREW, CAP-HFH M10-1.25 X100 Z&Y CL10.9 | 1 | $1.37 | |
| 28 | 0423-545 | SCREW,BODY-SELF TAP #12 X 3/4 A Z&B | 1 | $1.09 | |
| 29 | 1406-068 | GUARD,BOOT-REAR-RH (BLACK) | 1 | $37.95 | |
| 29 | 1406-069 | GUARD,BOOT-REAR-LH (BLACK) | 1 | $37.95 |
