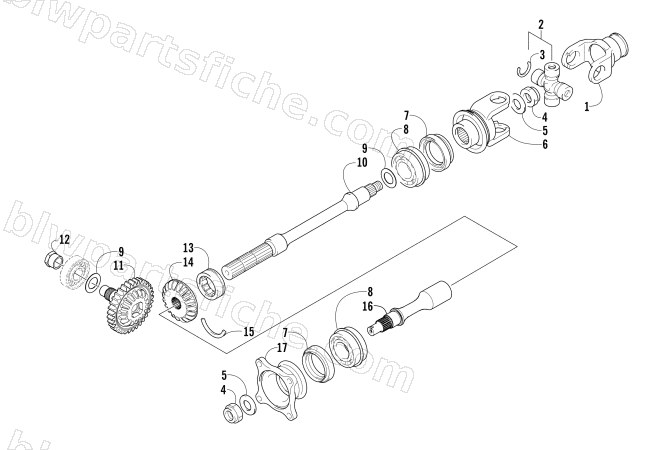

2018 Arctic Cat ALTERRA 700 MUD PRO LTD EPS — SECONDARY DRIVE ASSEMBLY
2018 ALTERRA 700 MUD PRO LTD EPS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0819-063 | YOKE,PROPELLER SHAFT-ASSY | 1 | $66.95 | |
| 2 | 1402-164 | CROSS, UNIVERSAL(20mm)-SET | 1 | $22.01 | |
| 3 | 0423-450 | RING,RETAINING-CROSS | 1 | $3.02 | |
| 4 | 0827-013 | NUT,HEX SHOULDER M16X1.5 | 1 | $3.02 | |
| 5 | 0828-020 | WASHER, STEEL, 16.3 x 30 x 3 | 1 | $3.30 | |
| 6 | 0819-061 | YOKE,DRIVE OUTPUT-FRONT ASSY | 1 | $69.95 | |
| 7 | 0830-043 | SEAL,OIL-DRIVEN SHAFT | 1 | $6.89 | |
| 9 | 0828-021 | SHIM, 25 x 34 x .25 | 1 | $2.47 | |
| 9 | 0828-022 | SHIM, 25 x 34 x .30 | 1 | $8.21 | |
| 9 | 0828-023 | SHIM, 25 X 34 X 0.35 MM | 1 | $17.87 | |
| 9 | 0828-024 | SHIM,. 25 x 34 x .90 | 1 | $17.87 | |
| 9 | 0828-025 | SHIM, 25 x 34 x .95 | 1 | $17.87 | |
| 9 | 0828-026 | SHIM, 25 x 34 x 1.00 | 1 | $17.87 | |
| 9 | 0828-027 | SHIM, 25 x 34 x 1.05 | 1 | $17.87 | |
| 9 | 0828-028 | SHIM, 25 x 34 x 1.10 | 1 | $16.49 | |
| 9 | 0828-029 | SHIM, 25 x 34 x 1.15 | 1 | $17.87 | |
| 10 | 0819-115 | SECONDARY DRIVE SHAFT,17MM | 1 | $177.95 | |
| 11 | 0822-131 | GEAR,NF SECONDARY-20 DEG PA | 1 | $264.95 | |
| 12 | 0827-052 | NUT, NF-GEARS | 1 | $13.73 | |
| 13 | 0832-016 | BEARING, DRIVEN GEAR | 1 | $50.95 | |
| 14 | 0822-106 | GEAR,SECONDARY DRIVEN (GB-DN) | 1 | $129.95 | |
| 15 | 0819-011 | RING, DRIVEN BEARING | 1 | $17.87 | |
| 16 | 0819-053 | SHAFT, SECONDARY DRIVEN - REAR | 1 | $82.95 | |
| 17 | 0819-005 | FLANGE, OUTPUT JOINT - REAR, ASSEMBLY | 1 | $69.95 |
