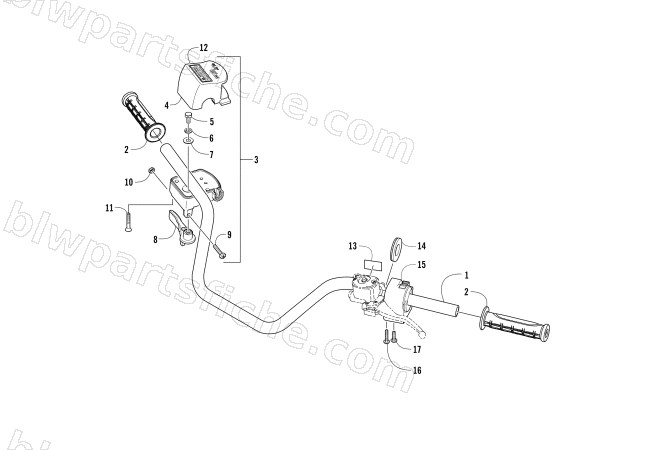

2018 Arctic Cat ALTERRA TBX 700 EPS — HANDLEBAR ASSEMBLY
2018 ALTERRA TBX 700 EPS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1505-017 | HANDLEBAR-PTD BLK | 1 | $30.95 | |
| 2 | 0405-106 | GRIP,HANDLEBAR | 1 | $20.63 | |
| 3 | 0509-054 | RHCA,2WD/4WD/D-L/K(010 ATV) | 1 | $203.95 | |
| 4 | 0409-141 | SWITCH,2WD/4WD WITH D-L/K (2010 FIS) | 1 | $114.95 | |
| 5 | 3007-392 | BOLT | 1 | $3.95 | |
| 6 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 7 | 3003-030 | WASHER, FLAT | 1 | $2.75 | |
| 8 | 0409-133 | LEVER,THROTTLE (010 FIS) | 1 | $52.95 | |
| 9 | 3423-014 | SCREW,5MM | 1 | $2.06 | |
| 10 | 3423-327 | NUT,5MM | 1 | $2.33 | |
| 11 | 3423-199 | SCREW, 5X30 | 1 | $1.78 | |
| 12 | 0411-966 | DECAL,WARNING DIFF LOCK(MINIATURE) | 1 | $1.78 | |
| 13 | 1411-865 | DECAL,WARNING-BRAKE LEVER LOCK | 1 | $3.30 | |
| 14 | 3409-019 | COVER, DUST | 1 | $2.61 | |
| 15 | 0509-014 | HANDLE CONTROL,LEFT-ASSY (W/ OVERIDE) | 1 | $144.95 | |
| 16 | 0409-028 | SCREW, SWITCH CONTROL - 5X45-6ZK | 1 | $4.95 | |
| 17 | 0409-027 | SCREW, SWITCH CONTROL - 5X35-6ZK | 1 | $4.95 |
