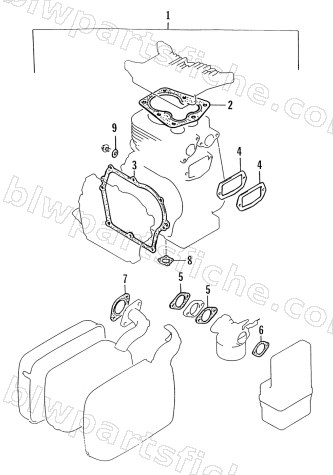

1993 Arctic Cat AC3000GD2 — GASKET SET (OPTIONAL)
1993 AC3000GD2
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0693-022 | GASKET SET | 1 | $94.95 | |
| 2 | 0691-998 | GASKET, CYLINDER HEAD | 1 | $39.95 | |
| 3 | 0691-243 | GASKET, CRANKCASE (ASB) | 1 | $5.95 | |
| 4 | 0693-004 | GASKET, AIR BREATHER | 1 | $10.97 | |
| 5 | 0691-265 | GASKET, CARBURETOR (ASB) | 1 | $1.59 | |
| 6 | 0691-231 | GASKET, AIR CLEANER (ASB) | 1 | $5.95 | |
| 7 | 0691-283 | GASKET, EXHAUST (ASB) | 1 | $6.95 | |
| 8 | 1691-153 | GASKET, OIL LEVEL | 1 | $19.25 | |
| 9 | 0693-455 | GASKET (M12.2X21X2) | 1 | $3.59 |
