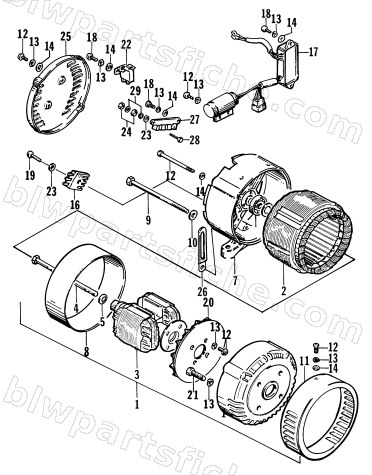

1993 Arctic Cat AC3000GD2 — GENERATOR ASSEMBLY
1993 AC3000GD2
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0693-136 | GENERATOR,ASSY | 1 | $2,088.95 | |
| 2 | 0693-137 | STATOR | 1 | $491.95 | |
| 5 | 3004-590 | WASHER,10MM | 1 | $1.49 | |
| 12 | 3004-594 | SCREW,M5X10 | 1 | $1.59 | |
| 13 | 3004-196 | HOSE, AIR VENT-EFI FUEL REG. | 1 | $29.95 | |
| 14 | 3004-649 | WASHER,5MM | 1 | $4.29 | |
| 16 | 0693-146 | DIODE | 1 | $93.95 | |
| 17 | 0693-142 | A V R | 1 | $648.95 | |
| 19 | 3002-981 | SCREW,PAN M5X.8X16 CR | 1 | $0.85 | |
| 22 | 0693-143 | HOLDER,BRUSH | 1 | $141.95 | |
| 23 | 0693-795 | TOOL SET | 1 | $51.95 | |
| 25 | 0693-145 | COVER,REAR | 1 | $97.95 | |
| 26 | 3002-278 | CLAMP,M6 | 1 | $3.95 | |
| 27 | 0693-144 | TERMINAL | 1 | $67.95 |
