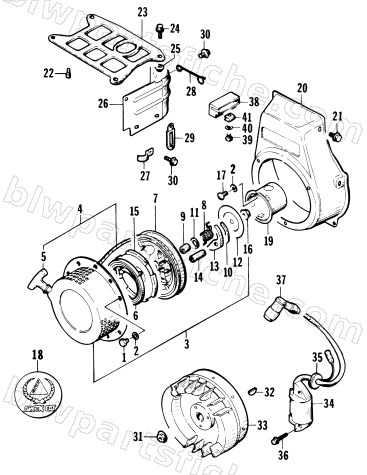

RECOIL STARTER & MAGNETO ASSY
1993 AC3000GD2
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 3 | 0691-293 | STARTER ASSY, RECOIL | 1 | $197.95 | |
| 4 | 0691-304 | GRIP ASSY. STARTER 5.0X1400 | 1 | $30.95 | |
| 6 | 3005-162 | SPRING, STARTER ROLL | 1 | $34.95 | |
| 7 | 0691-294 | REEL, STARTER | 1 | $44.95 | |
| 8 | 0691-301 | SPRING, FRICTION USE 0693-320 KIT | 1 | $4.95 | |
| 10 | 0693-320 | RATCHET SET | 1 | $28.95 | |
| 12 | 0691-300 | PLATE, FRICTION | 1 | $8.95 | |
| 15 | 0691-299 | CASE, SPRING | 1 | $7.95 | |
| 16 | 3007-373 | NUT | 1 | $3.16 | |
| 18 | 0691-161 | EMBLEM, ARCTCO SIDE | 1 | $17.95 | |
| 19 | 0691-306 | PULLEY, STARTER (H:45) | 1 | $22.95 | |
| 20 | 0691-290 | COVER, COOLING FAN | 1 | $97.95 | |
| 22 | 0691-224 | CUSHION | 1 | $2.39 | |
| 23 | 0691-292 | COWLING, VENTILATION UPPER | 1 | $34.95 | |
| 25 | 3002-863 | NUT,HEX M6 W/WASHER FACE | 1 | $1.95 | |
| 26 | 0691-291 | COWLING, VENTILATION SIDE | 1 | $27.95 | |
| 28 | 0691-230 | CLAMP,M10 | 1 | $3.09 | |
| 29 | 3002-465 | CLAMP,M6-CABLE | 1 | $1.95 | |
| 31 | 0691-811 | NUT,12MM | 1 | $2.79 | |
| 32 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 | |
| 33 | 0693-014 | ROTOR | 1 | $241.95 | |
| 34 | 0691-317 | STATOR ASSY | 1 | $37.95 | |
| 35 | 0691-320 | GROMMET, MAGNETO WIRE | 1 | $7.95 | |
| 37 | 0691-322 | CAP ASSY, SPARK PLUG | 1 | $27.95 | |
| 38 | 0691-319 | HOLDER, LEAD CONNECTOR | 1 | $6.95 | |
| 41 | 0691-218 | NUT 4MM | 1 | $2.39 |
