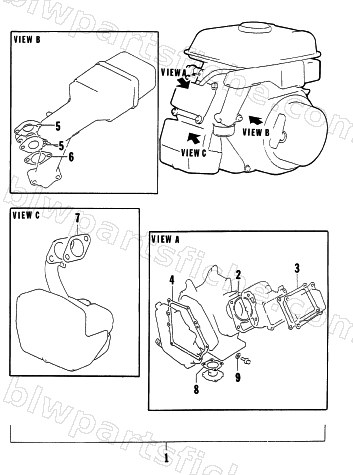

1997 Arctic Cat 1400G — GASKET SET (OPTIONAL)
1997 1400G
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0693-356 | GASKET SET | 1 | $84.95 | |
| 2 | 0691-386 | GASKET, CYLINDER HEAD | 1 | $21.95 | |
| 3 | 0691-387 | GASKET, CYLINDER HEAD COVER | 1 | $16.49 | |
| 4 | 0691-834 | GASKET,CRANKCASE | 1 | $27.95 | |
| 5 | 0693-282 | GASKET, CARBURETOR | 1 | $12.35 | |
| 6 | 0693-287 | GASKET, AIR CLEANER | 1 | $9.59 | |
| 7 | 0691-852 | GASKET,EXHAUST | 1 | $20.63 | |
| 8 | 1691-153 | GASKET, OIL LEVEL | 1 | $19.25 | |
| 9 | 0691-372 | GASKET, M10X1X16X1 | 1 | $2.29 |
