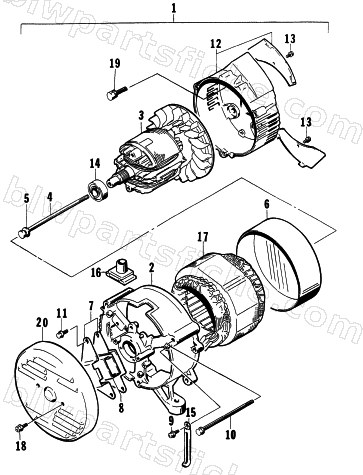

GENERATOR ASSEMBLY
1997 1400G
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0691-868 | GENERATOR ASS'YL | 1 | $1,044.95 | |
| 2 | 0691-475 | BRACKET, REAR | 1 | $127.95 | |
| 3 | 0693-344 | ROTOR | 1 | $747.95 | |
| 4 | 0693-345 | BOLT,8MM | 1 | $6.95 | |
| 5 | 3007-502 | WASHER,OIL SEPARATOR PLATE | 1 | $2.75 | |
| 6 | 0693-347 | COVER, BAND | 1 | $44.95 | |
| 8 | 0691-478 | CONDENSER | 1 | $139.95 | |
| 9 | 3007-399 | BOLT,INLET PIPE | 1 | $3.85 | |
| 11 | 0693-349 | BOLT,M5X10 | 1 | $2.09 | |
| 12 | 0693-350 | BRACKET, FRONT | 1 | $251.95 | |
| 13 | 0693-351 | SCREW,M4X8 | 1 | $3.69 | |
| 14 | 0693-113 | BEARING,BALL(15X35X11) | 1 | $41.95 | |
| 16 | 0693-352 | GROMMET | 1 | $27.95 | |
| 17 | 0693-531 | STATOR ASSY | 1 | $739.95 | |
| 20 | 0693-355 | COVER, REAR | 1 | $111.95 |
