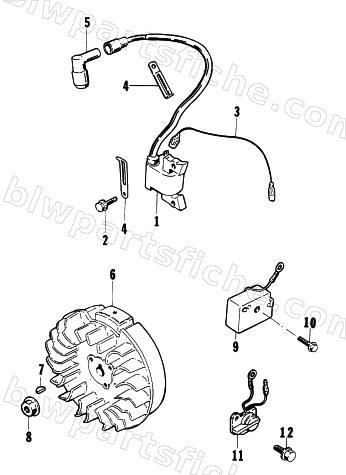

1997 Arctic Cat 1400G — MAGNETO ASSEMBLY
1997 1400G
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0693-326 | COIL ASSY, IGNITION | 1 | $125.95 | |
| 2 | 0693-242 | BOLT, M6X23 | 1 | $2.95 | |
| 3 | 0693-263 | LEAD WIRE, MAGNETO STOP | 1 | $17.87 | |
| 4 | 3004-761 | CLAMP,FLAT-COATED,M6 | 1 | $4.95 | |
| 5 | 0691-322 | CAP ASSY, SPARK PLUG | 1 | $27.95 | |
| 6 | 0691-457 | FLYWHEEL | 1 | $174.95 | |
| 7 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 | |
| 8 | 3007-556 | NUT | 1 | $3.95 | |
| 9 | 0691-867 | ALARM, OIL LEVEL | 1 | $124.95 | |
| 10 | 3007-503 | BOLT,MAGNETO COVER | 1 | $3.16 | |
| 11 | 0691-461 | SWITCH ASSY, ENGINE STOP | 1 | $41.95 | |
| 12 | 0691-746 | BOLT,M6X10 | 1 | $1.79 |
