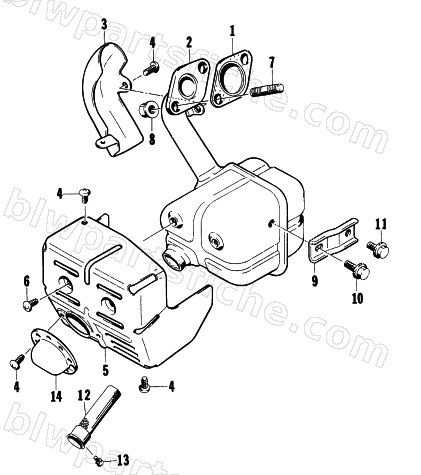

1997 Arctic Cat 1400G — MUFFLER ASSEMBLY
1997 1400G
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0691-852 | GASKET,EXHAUST | 1 | $20.63 | |
| 2 | 0691-435 | MUFFLER COMP | 1 | $148.95 | |
| 3 | 0691-434 | COVER, EXHAUST PIPE | 1 | $19.95 | |
| 4 | 0693-296 | SCREW,5MM | 1 | $3.09 | |
| 5 | 0691-437 | COVER, MUFFLER | 1 | $37.95 | |
| 7 | 1691-165 | STUD BOLT,M8X16 | 1 | $4.95 | |
| 8 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 | |
| 9 | 0691-436 | BRACKET, MUFFLER | 1 | $5.95 | |
| 10 | 0693-241 | BOLT, M6X12 | 1 | $3.16 | |
| 11 | 0693-318 | BOLT,M6X10 | 1 | $4.29 | |
| 12 | 0691-438 | SCREEN, SPARK ARRESTOR | 1 | $22.95 | |
| 13 | 3004-545 | SCREW,M6X4 | 1 | $1.95 |
