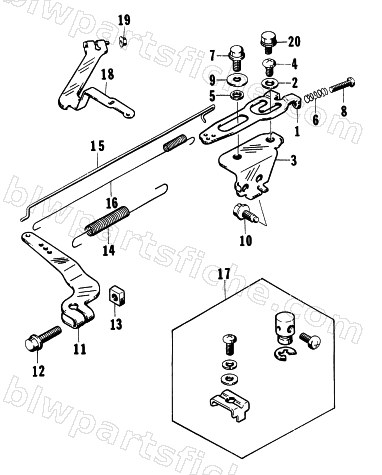

THROTTLE CONTROL ASSEMBLY
1997 1400G
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0691-147 | HOOK, GOVERNOR SPRING | 1 | $11.95 | |
| 2 | 0691-148 | WASHER, GOVERNOR SPRING HOOK | 1 | $2.89 | |
| 3 | 0691-864 | BRACKET, THROTTLE | 1 | $29.95 | |
| 4 | 0691-015 | SCREW,5MM | 1 | $2.09 | |
| 5 | 0691-024 | SPACER,M6.8X10X2.2 | 1 | $2.79 | |
| 6 | 0691-046 | SPRING,M5 | 1 | $1.29 | |
| 7 | 3007-371 | BOLT (6X12) | 1 | $3.16 | |
| 8 | 3004-535 | SCREW, 4X20 | 1 | $1.95 | |
| 9 | 3007-502 | WASHER,OIL SEPARATOR PLATE | 1 | $2.75 | |
| 10 | 0693-241 | BOLT, M6X12 | 1 | $3.16 | |
| 11 | 0691-449 | LEVER, THROTTLE CONTROL | 1 | $5.95 | |
| 12 | 3007-409 | BOLT | 1 | $3.16 | |
| 14 | 0691-865 | SPRING, THROTTLE CONTROL | 1 | $13.73 | |
| 15 | 0691-454 | ROD, CARBURETOR | 1 | $5.95 | |
| 16 | 0691-455 | SPRING, CARBURETOR ROD | 1 | $12.35 | |
| 17 | 0691-553 | HOOK SET, CABLE | 1 | $39.95 | |
| 18 | 0693-259 | LEVER, THROTTLE CONTROL | 1 | $36.95 | |
| 19 | 0691-017 | NUT,6MM | 1 | $1.78 | |
| 20 | 0693-324 | BOLT, GOV SPRING HOOK-M5X12 | 1 | $3.69 |
