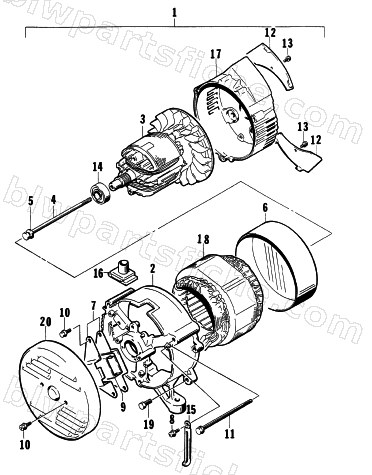

GENERATOR ASSEMBLY
1997 1800G
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0691-475 | BRACKET, REAR | 1 | $127.95 | |
| 3 | 0693-374 | ROTOR | 1 | $684.95 | |
| 5 | 3007-502 | WASHER,OIL SEPARATOR PLATE | 1 | $2.75 | |
| 9 | 0691-478 | CONDENSER | 1 | $139.95 | |
| 12 | 0693-350 | BRACKET, FRONT | 1 | $251.95 | |
| 13 | 0693-351 | SCREW,M4X8 | 1 | $3.69 | |
| 14 | 0693-113 | BEARING,BALL(15X35X11) | 1 | $41.95 | |
| 15 | 3002-278 | CLAMP,M6 | 1 | $3.95 | |
| 16 | 0693-352 | GROMMET | 1 | $27.95 | |
| 17 | 0691-472 | BRACKET, FRONT | 1 | $127.95 | |
| 18 | 0693-377 | STATOR | 1 | $1,099.95 |
