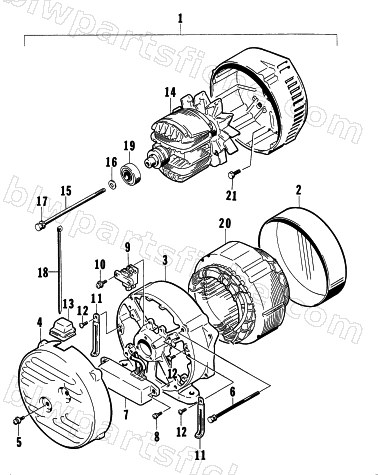

GENERATOR ASSEMBLY
1997 2200G
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0691-921 | GENERATOR ASS'Y | 1 | $1,295.95 | |
| 3 | 0691-344 | HOUSING, REAR | 1 | $147.95 | |
| 4 | 0693-272 | COVER, REAR HOUSING | 1 | $118.95 | |
| 5 | 0693-378 | SCREW | 1 | $2.29 | |
| 6 | 0691-523 | BOLT, 6X125 | 1 | $6.95 | |
| 7 | 0691-196 | REGULATOR ASSY, VOLTAGE | 1 | $556.95 | |
| 8 | 3004-634 | SCREW,M5X16 | 1 | $3.95 | |
| 10 | 0693-351 | SCREW,M4X8 | 1 | $3.69 | |
| 12 | 0693-379 | SCREW,M5X10 | 1 | $2.09 | |
| 13 | 0691-348 | GROMMET, GENERATOR | 1 | $12.95 | |
| 14 | 0693-380 | ROTOR | 1 | $809.95 | |
| 15 | 0693-381 | BOLT, ROTOR,M8X19 | 1 | $11.95 | |
| 16 | 3423-204 | WASHER | 1 | $1.95 | |
| 17 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 19 | 0691-768 | BEARING,BALL(17X40X12) | 1 | $32.95 | |
| 20 | 0691-526 | STATOR ASSY, GENERATOR | 1 | $709.95 | |
| 21 | 0693-383 | BOLT, GENERATOR-M8X25 | 1 | $3.59 |
