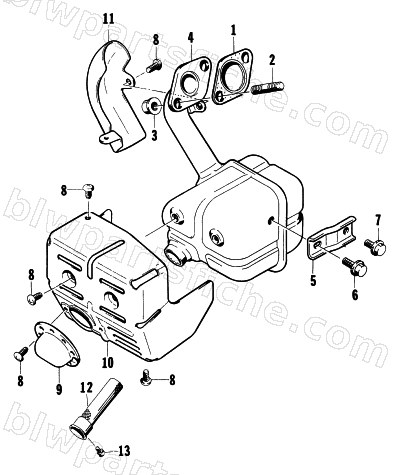

1997 Arctic Cat 2200G — MUFFLER ASSEMBLY
1997 2200G
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0691-852 | GASKET,EXHAUST | 1 | $20.63 | |
| 2 | 1691-165 | STUD BOLT,M8X16 | 1 | $4.95 | |
| 3 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 | |
| 4 | 0691-435 | MUFFLER COMP | 1 | $148.95 | |
| 5 | 0691-436 | BRACKET, MUFFLER | 1 | $5.95 | |
| 6 | 0693-241 | BOLT, M6X12 | 1 | $3.16 | |
| 7 | 3007-457 | BOLT | 1 | $3.16 | |
| 8 | 0693-296 | SCREW,5MM | 1 | $3.09 | |
| 10 | 0691-437 | COVER, MUFFLER | 1 | $37.95 | |
| 11 | 0691-434 | COVER, EXHAUST PIPE | 1 | $19.95 | |
| 12 | 0691-438 | SCREEN, SPARK ARRESTOR | 1 | $22.95 | |
| 13 | 3004-545 | SCREW,M6X4 | 1 | $1.95 |
