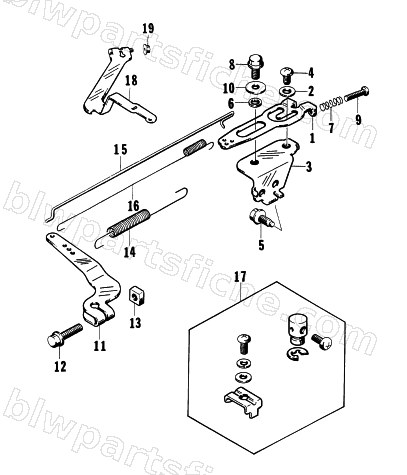

1997 Arctic Cat 2200G — THROTTLE CONTROL ASSEMBLY
1997 2200G
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0691-147 | HOOK, GOVERNOR SPRING | 1 | $11.95 | |
| 2 | 0691-148 | WASHER, GOVERNOR SPRING HOOK | 1 | $2.89 | |
| 3 | 0691-864 | BRACKET, THROTTLE | 1 | $29.95 | |
| 4 | 0693-368 | BOLT, GOV SPRING HOOK-M5X12 | 1 | $3.16 | |
| 5 | 0693-241 | BOLT, M6X12 | 1 | $3.16 | |
| 6 | 0691-024 | SPACER,M6.8X10X2.2 | 1 | $2.79 | |
| 7 | 0693-369 | SPRING, GOV ADJUST SCREW,COMPRESSION,M5 | 1 | $2.39 | |
| 8 | 3007-371 | BOLT (6X12) | 1 | $3.16 | |
| 9 | 3004-535 | SCREW, 4X20 | 1 | $1.95 | |
| 10 | 3007-502 | WASHER,OIL SEPARATOR PLATE | 1 | $2.75 | |
| 11 | 0691-449 | LEVER, THROTTLE CONTROL | 1 | $5.95 | |
| 12 | 3008-218 | BOLT,6X20 | 1 | $3.59 | |
| 14 | 0691-915 | SPRING, THROTTLE CONTROL | 1 | $15.95 | |
| 15 | 0691-916 | ROD, CARBURETOR | 1 | $5.95 | |
| 16 | 0691-917 | SPRING, CARBURETOR | 1 | $8.95 | |
| 17 | 0691-553 | HOOK SET, CABLE | 1 | $39.95 | |
| 18 | 0693-259 | LEVER, THROTTLE CONTROL | 1 | $36.95 | |
| 19 | 3002-863 | NUT,HEX M6 W/WASHER FACE | 1 | $1.95 |
