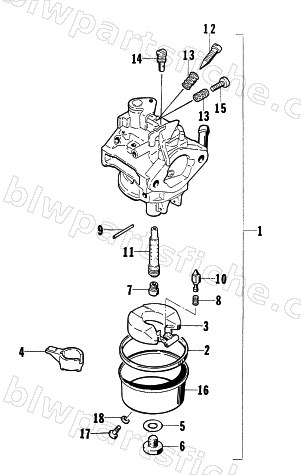

CARBURETOR ASSEMBLY
1997 2500GD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1691-145 | CARBURATOR ASSY | 1 | $297.95 | |
| 2 | 0691-423 | GASKET | 1 | $19.25 | |
| 3 | 0691-424 | FLOAT | 1 | $38.95 | |
| 4 | 0691-426 | RING | 1 | $16.49 | |
| 5 | 0691-422 | GASKET | 1 | $5.95 | |
| 6 | 1691-147 | KIT,DRAIN PLUG | 1 | $15.11 | |
| 7 | 0693-054 | JET, MAIN 67.5 | 1 | $15.95 | |
| 8 | 0691-428 | SPRING | 1 | $6.75 | |
| 9 | 0691-098 | PIN, FLOAT | 1 | $5.95 | |
| 11 | 0693-056 | NOZZLE | 1 | $53.95 | |
| 12 | 0691-102 | ADJUSTER | 1 | $13.73 | |
| 13 | 0691-272 | SPRING, THROTTLE SCREW | 1 | $12.35 | |
| 14 | 0693-538 | JET, PILOT | 1 | $32.95 | |
| 15 | 0693-315 | SCREW,M4X12 | 1 | $1.64 | |
| 16 | 0693-283 | CHAMBER, FLOAT | 1 | $41.95 | |
| 17 | 0693-284 | PLUG, DRAIN | 1 | $10.95 | |
| 18 | 0693-285 | GASKET | 1 | $4.40 |
