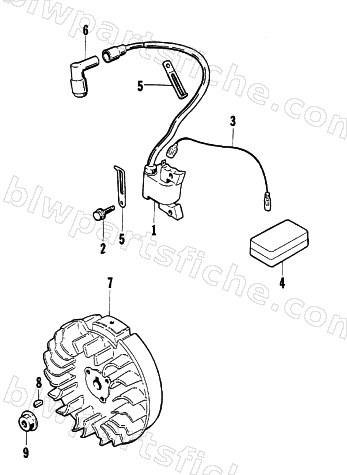

1997 Arctic Cat 2500GD — MAGNETO ASSEMBLY
1997 2500GD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0693-233 | UNIT, IGNITER | 1 | $199.95 | |
| 2 | 0693-242 | BOLT, M6X23 | 1 | $2.95 | |
| 3 | 0693-263 | LEAD WIRE, MAGNETO STOP | 1 | $17.87 | |
| 4 | 0693-097 | HOLDER, CONNECTOR | 1 | $13.73 | |
| 5 | 3004-761 | CLAMP,FLAT-COATED,M6 | 1 | $4.95 | |
| 6 | 0691-322 | CAP ASSY, SPARK PLUG | 1 | $27.95 | |
| 7 | 0691-918 | FLYWHEEL, MAGNETO | 1 | $214.95 | |
| 8 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 | |
| 9 | 3007-556 | NUT | 1 | $3.95 |
