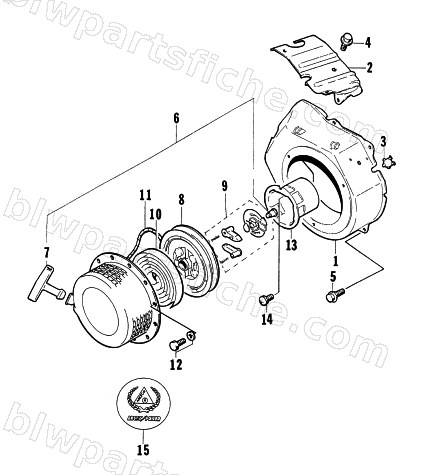

RECOIL STARTER ASSEMBLY
1997 2500GD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0693-290 | COVER, COOLING FAN (BLACK) | 1 | $97.95 | |
| 2 | 0693-291 | COWLING, VENTILATION UPPER | 1 | $32.95 | |
| 3 | 0691-122 | PROTECTOR, LEAD WIRE | 1 | $5.95 | |
| 4 | 0693-241 | BOLT, M6X12 | 1 | $3.16 | |
| 5 | 3007-457 | BOLT | 1 | $3.16 | |
| 6 | 0693-232 | STARTER ASSY, RECOIL | 1 | $162.95 | |
| 7 | 0693-257 | GRIP ASSY. | 1 | $27.95 | |
| 8 | 0691-856 | REEL, STARTER | 1 | $58.95 | |
| 9 | 0693-256 | RATCHET SET | 1 | $24.77 | |
| 10 | 3005-162 | SPRING, STARTER ROLL | 1 | $34.95 | |
| 11 | 3006-889 | ROPE,STARTER-C.T.L(6MM DIA)(203 CM) | 1 | $27.95 | |
| 12 | 0693-246 | BOLT,6MM | 1 | $4.68 | |
| 13 | 0691-863 | PULLEY, STARTER | 1 | $42.95 | |
| 14 | 3007-689 | SCREW,M6X16 | 1 | $3.85 | |
| 15 | 0693-039 | DECAL | 1 | $13.95 |
