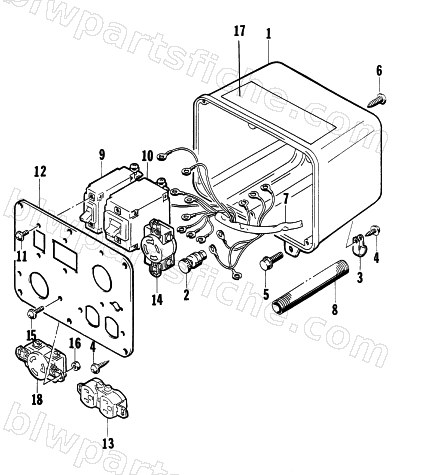

1997 Arctic Cat 4000G2 — CONTROL BOX ASSEMBLY
1997 4000G2
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0693-449 | BOX, CONTROL | 1 | $139.95 | |
| 2 | 0691-211 | TERMINAL | 1 | $34.95 | |
| 3 | 0691-038 | CLAMP,M13 | 1 | $3.09 | |
| 5 | 3007-409 | BOLT | 1 | $3.16 | |
| 7 | 0693-450 | HARNESS, CONTROL | 1 | $197.95 | |
| 9 | 0691-206 | CIRCUIT BREAKER (30A) | 1 | $191.95 | |
| 10 | 0691-207 | CIRCUIT BREAKER (15A) | 1 | $191.95 | |
| 11 | 0691-793 | SCREW,M4X6 | 1 | $1.29 | |
| 12 | 0691-906 | PLATE, PANEL | 1 | $74.95 | |
| 13 | 0691-208 | RECEPTACLE | 1 | $67.95 | |
| 14 | 0691-210 | RECEPTACLE | 1 | $125.95 | |
| 15 | 3004-566 | SCREW,M4X10 | 1 | $2.19 | |
| 16 | 0693-342 | NUT,4MM | 1 | $4.29 | |
| 17 | 0691-937 | DECAL, OPERATING | 1 | $8.95 | |
| 18 | 0691-209 | RECEPTACLE | 1 | $129.95 |
