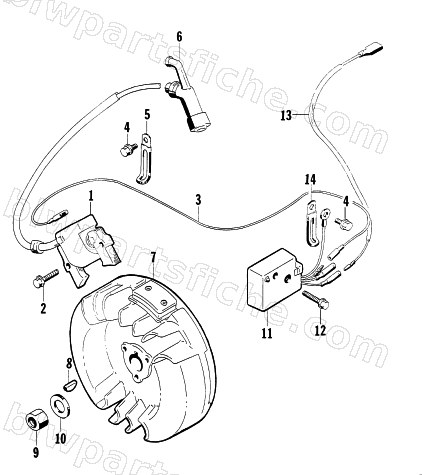

1997 Arctic Cat 4000G2 — MAGNETO ASSEMBLY
1997 4000G2
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0693-975 | UNIT IGNITER | 1 | $524.95 | |
| 2 | 0691-004 | BOLT, 6X20 | 1 | $16.95 | |
| 3 | 0693-263 | LEAD WIRE, MAGNETO STOP | 1 | $17.87 | |
| 4 | 0693-241 | BOLT, M6X12 | 1 | $3.16 | |
| 5 | 3002-465 | CLAMP,M6-CABLE | 1 | $1.95 | |
| 6 | 0691-172 | CAP ASSY, SPARK PLUG (R) | 1 | $87.95 | |
| 7 | 0691-168 | ROTOR | 1 | $367.95 | |
| 8 | 0691-785 | KEY(FASTENER) | 1 | $4.95 | |
| 9 | 3004-993 | NUT,16MM | 1 | $2.95 | |
| 10 | 3004-994 | WASHER,16MM | 1 | $1.95 | |
| 11 | 0691-867 | ALARM, OIL LEVEL | 1 | $124.95 | |
| 12 | 3007-381 | BOLT | 1 | $3.16 | |
| 13 | 0691-170 | LEAD WIRE, MAGNETO STOP | 1 | $13.95 |
